Description
Altronix AL175ULX is a Two (2) Output Switching Power Supply/Charger that converts a 115VAC 60Hz input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
-
Input
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
-
Output
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
-
Supervision
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
-
Visual Indicators
- AC input and DC output LED indicators.
-
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
-
BTU/Hr. (approx.):
- 12VDC: 11 BTU/Hr.
- 24VDC: 22 BTU/Hr.
- System AC input VA requirement: 69VA.

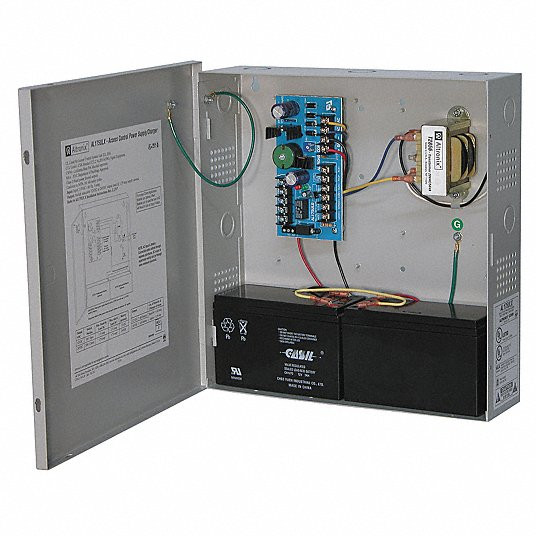

The Altronix AL175ULX Access Control Power Supply Charger offers reliable power performance designed for professionals in the security and installation industry. Delivering two individually PTC protected outputs, it seamlessly converts a 115VAC input into efficient 12VDC or 24VDC outputs to meet diverse device power needs.
This robust power supply is equipped with multiple features tailored for use in access control systems, enhancing operational integrity and providing peace of mind for security installations.
- Inputs: 115VAC, 60Hz, 0.6A with access control trigger input.
- Outputs: Selectable 12VDC or 24VDC, 1.75A supply current with fail-safe/fail-secure lock outputs.
- Two Class 2 Rated power limited PTC protected outputs, rated up to 2.5A.
- Auxiliary unswitched power output and filtered, electronically regulated output for stability.
- Built-in charger supports sealed lead acid or gel type batteries with automatic switch over during AC failures.
- Supervision features include AC fail and Fire Alarm Disconnect with latching/reset options.
- Visual indications with AC input and DC output LED indicators for easy monitoring.
- Operating temperature range of 0ºC to 49ºC (32ºF to 120ºF) with storage capabilities from -20ºC to 70ºC (-4ºF to 158ºF).
- High humidity tolerance of 85% +/- 5% ensures operational reliability in various environments.
- Efficient power consumption: 69VA system AC input requirement.
Choose the Altronix AL175ULX for a dependable and professional-grade power supply solution that meets the demanding requirements of modern security installations.
