Description
AL600ULX is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC non power-limited output.
-
Input
- Input 115VAC, 60Hz, 3.5A.
-
Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
-
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
-
Visual Indicators
- AC input and DC output LED indicators.
-
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
-
BTU/Hr (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 402.5VA.

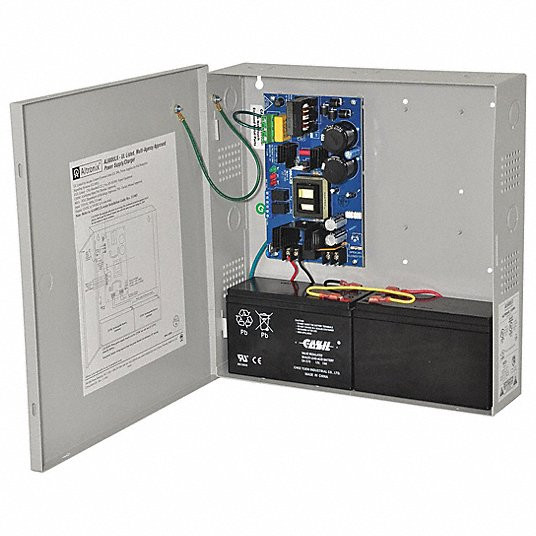

The Altronix AL600ULX Power Supply Charger is a robust solution for powering security systems and electronic devices with reliable performance and efficient energy conversion.
This unit features a selectable 12VDC or 24VDC output, providing flexibility for installers who require precise voltage settings for various applications. With a continuous output of 6A and an enclosure designed for easy integration, the AL600ULX is an ideal choice for professional installations.
- Input: 115VAC, 60Hz, 3.5A for seamless power integration.
- Output options include 12VDC or 24VDC selectable configurations.
- 6A continuous supply current ensures stable operation for connected devices.
- Filtered and electronically regulated output for noise reduction and reliability.
- Short circuit and thermal overload protection safeguards connected systems.
- Built-in charger for sealed lead acid or gel type batteries with automatic switch over.
- AC fail supervision with selectable notification triggers (30 seconds or 6 hours).
- Visual indicators for AC input and DC output status for monitoring purposes.
- Operating temperature range of 0° C to 49° C (32° F to 120° F) ensuring consistent operation in various environments.
- Low battery and battery presence supervision to maintain optimal performance.
The Altronix AL600ULX Power Supply Charger is engineered for reliability and efficiency, making it the top choice for security professionals seeking a powerful, dependable solution.
