Description

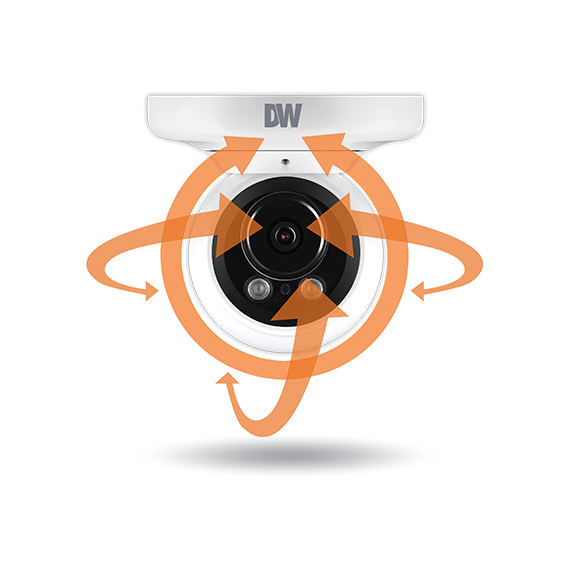

This MEGApix IVA+ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.8mm fixed lens, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus+ color in near-total darkness technology for quality video in any lighting condition. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections and offer easy angle adjustment for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. Â Â Â Â Â Â
Product Feautres :
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus+ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR+ with intelligent camera sync
- Vandal ball housing reduces IR reflection
- Smart DNR+ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliantÂ
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Files:
Specifications:
| 3D digital noise reduction | 3D DNR |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth), Smart bitrate control – CVBR |
| Compliance | CF, FCC, RoHS, ONVIF, NDAA, TAA, UL Listing |
| Day and night | Auto day/nighy, Night (B/W) |
| De-fog | Yes |
| Dimension | 4.92" x 4.8" (125 x 122 mm) |
| Features | Star-Light Plus |
| Horizontal Field of View (HFOV) | 110° |
| Housing | Vandal ball |
| IK rating | IK10 Rated |
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Intelligent Video Analytics | IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IP | IPv4, IPv6 |
| IP rating | Weather Resistant (IP67) |
| IR Distance | 100" range Smart IR+ |
| LAN | RJ45 (10/100Base-T) |
| Lens Type | Fixed Lens |
| Materials | Metal |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Minimum Scene Illumination in color | 0.05 lux (color), 0.0 lux (B/W) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | x7.5, x10, Off, x2, x3, x5, x4, x6 |
| Notifications | Email, FTP server, SD card recording |
| Operating Humidity | 10-90% (non-condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operational Features | True D/N |
| Power Consumption | DC12V: max 5.7W, 475mA, PoE: max 7.2W |
| Power Requirements | 12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included) |
| Privacy Zones | 16 programmable privacy masks |
| Product Type | Cameras |
| Protocols | DHCP, DNS, NTP, FTP, ONVIF, HTTP, RTP (UDP/TCP), HTTPs, RTSP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP), DDNS |
| Resolution | 2.1MP/1080p |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF, H.264: 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Security | HTTPS (TLS), IP filtering, 802.1x, Digest authemtication (ID/PW) |
| Shutter Speed | Auto, Manual, Slow Shutter, Anti-Flicker |
| Slow Shutter Speed | 1/15 ~ 1/32000 |
| Stream Speed | Up to 30fps at all resolutions |
| Total Pixels | 1928 (H) x 1088 (V) 1945 (H) X 1109 (V) |
| Veritcal Field of View (VFOV | 59° |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, Any ONVIF conformant CMS, DMP |
| Warranty | 5 Year Warranty |
| Web Viewer | Mac OS, Linux OS, Internet Explorer browser, Google Chrome browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Weight | 1.76 lbs (0.8kg) |
| Wide Dynamic Range (WDR) | True WDR 120dB |
