Description

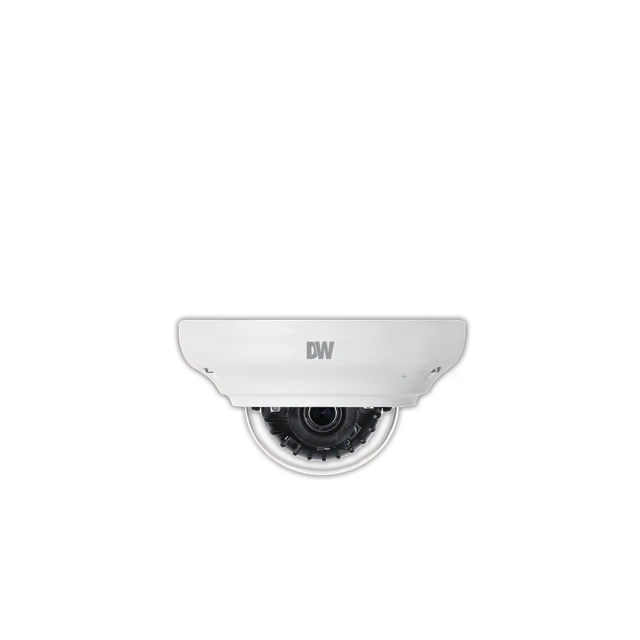

This MEGApix IVA+ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps and the convenience of audio input through built-in microphone. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 2.8 and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus+ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix and Star-Light Plus+ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your dcor. Â Â Â Â Â Â
Product Feautres :
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus+ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded model)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- 2.8mm fixed lens (DWC-MV72Wi28ATW)
- 4.0mm fixed lens (DWC-MV72Wi4ATW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR+ with intelligent camera sync
- Audio input through built-in microphone
- Ultra low-profile vandal dome camera
- Smart DNR+ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliantÂ
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Files:
Specifications:
| 3D digital noise reduction | 3D DNR |
| Audio compression | G.711 |
| Audio in/out | 1 microphone built-in |
| Auto gain control | Auto |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth), Smart bitrate control – CVBR |
| Compliance | CF, FCC, RoHS, ONVIF, NDAA, TAA, UL Listing |
| Day and night | Auto day/nighy, Night (B/W) |
| De-fog | Yes |
| Dimension | 4.13" x 2.4" (105 x 61 mm) |
| Features | Star-Light Plus |
| Focal Length | 2.8mm, 4.0mm |
| Horizontal Field of View (HFOV) | 111°, 86°, 115° |
| Housing | Vandal Dome |
| IK rating | IK10 Rated |
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Intelligent Video Analytics | IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IP | IPv4, IPv6 |
| IP rating | Weather Resistant (IP67) |
| IR Distance | 80" range Smart IR+ |
| LAN | RJ45 (10/100Base-T) |
| Lens Type | Fixed Lens |
| Materials | Metal, Polycarbonate Dome |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Minimum Scene Illumination in color | 0.05 lux (color), 0.08 lux (color), 0.0 lux (B/W) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Off, x2, x3, x5, x6, x7.5, x10, x4 |
| Notifications | Email, FTP server, SD card recording |
| Operating Humidity | 10-90% (non-condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operational Features | True D/N |
| Power Consumption | DC12V: max 3.7W, 308.3mA, PoE: max 5.5W |
| Power Requirements | 12 V DC, PoE, IEEE 802.3af Class 2, (Adapter not included) |
| Privacy Zones | 16 programmable privacy masks |
| Product Type | Cameras |
| Protocols | NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, DDNS, SNMPv1/v2/v3 (MIB-2), DHCP, SSL, TCP/IP, UDP, Zeroconf (AutoIP), DNS, FTP, HTTP, HTTPs, ICMP |
| Resolution | 2.1MP/1080p |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF, H.264: 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Security | HTTPS (TLS), IP filtering, 802.1x, Digest authemtication (ID/PW) |
| Shutter Speed | Auto, Manual, Slow Shutter, Anti-Flicker |
| Slow Shutter Speed | 1/15 ~ 1/32000 |
| Stream Speed | Up to 30fps at all resolutions |
| Total Pixels | 1928 (H) x 1088 (V) 1945 (H) X 1109 (V) |
| Veritcal Field of View (VFOV | 62°, 46° |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, Any ONVIF conformant CMS, DMP |
| Warranty | 5 Year Warranty |
| Web Viewer | Linux OS, Internet Explorer browser, Google Chrome browser, Mozilla Firefox browser, Safari browser, Windows OS, Mac OS |
| Weight | 0.79 lbs (0.36kg) |
| Wide Dynamic Range (WDR) | True WDR 120dB |
The DWC-MV72Wi28ATW Vandal Dome is engineered for superior surveillance and built with cutting-edge technology. Providing exceptional 2.1MP/1080p resolution at real-time 30fps, this camera is ideal for professional installations requiring robust security solutions. Its NDAA compliance and advanced video analytics make it the preferred choice for discerning professionals.
Equipped with a Star-Light Plus+ sensor, this camera excels in low-light conditions, delivering clear and vibrant color footage even in near darkness. The intelligent video analytics capabilities, including real-time person and vehicle detection, provide enhanced security insights, making your surveillance system smarter and more effective.
- 2.1MP/1080p resolution at real-time 30fps
- Star-Light Plus+ color technology for low-light environments
- Advanced Intelligent Video Analytics (IVA) pre-loaded model
- Seamless integration with DW Spectrum IPVMS
- Two lens options: 2.8mm and 4.0mm fixed lenses
- True Wide Dynamic Range (WDR) for enhanced image detail
- Triple codec support (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR+ for excellent night-time visibility
- Built-in microphone for audio input
- Ultra low-profile vandal dome design
- IP67 rated for dust and water resistance
- IK10 impact resistant housing for maximum durability
- 5-year warranty for reliable performance
Elevate your security system with the DWC-MV72Wi28ATW Vandal Dome camera, designed for installers seeking reliability, performance, and innovative surveillance capabilities.
