Description
This MEGApix IVA+ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.8~12mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus+ color in near-total darkness technology for quality video in any lighting condition. The IP66-rated, IK-10 impact resistant vandal housing features CleanView+ self-cleaning dome treatment. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. Â Â Â Â Â Â
Product Feautres :
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus+ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)Â
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR+ with intelligent camera sync
- CleanView+ hydrophobic dome coating repels water, dust and grease
- Smart DNR+ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Files:
Specifications:
| 3D digital noise reduction | 3D DNR |
| Advanced Lens Features | Motorized zoom, Auto focus, P-iris |
| Alarm in/out | 1 input, 1 output |
| Audio compression | G.711 |
| Audio in/out | 1 input, 1 output |
| Auto gain control | Auto |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth), Smart bitrate control – CVBR |
| Compliance | RoHS, ONVIF, NDAA, TAA, UL Listing, CF, FCC |
| Day and night | Auto day/nighy, Night (B/W) |
| De-fog | Yes |
| Dimension | 4.92" x 3.6" (125 x 92 mm) |
| Features | Star-Light Plus |
| Horizontal Field of View (HFOV) | 96° ~ 35° |
| Housing | Vandal Dome |
| IK rating | IK10 Rated |
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Intelligent Video Analytics | IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IP | IPv4, IPv6 |
| IP rating | Weather Resistant (IP66) |
| IR Distance | 100" range Smart IR+ |
| LAN | RJ45 (10/100Base-T) |
| Lens Type | Vari-focal Lens |
| Materials | Metal, Polycarbonate Dome |
| Mechanical Features | Cleanview |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Minimum Scene Illumination in color | 0.02 lux (color), 0.0 lux (B/W) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | x4, Off, x2, x3, x5, x6, x7.5, x10 |
| Notifications | Email, FTP server, SD card recording |
| Operating Humidity | 10-90% (non-condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operational Features | True D/N |
| Power Consumption | DC12V: max 6.5W, 541.6mA, PoE: max 8.5W |
| Power Requirements | 12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included) |
| Privacy Zones | 16 programmable privacy masks |
| Product Type | Cameras |
| Protocols | UDP, Zeroconf (AutoIP), DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP |
| Resolution | 2.1MP/1080p |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF, H.264: 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Security | HTTPS (TLS), IP filtering, 802.1x, Digest authemtication (ID/PW) |
| Shutter Speed | Anti-Flicker, Auto, Manual, Slow Shutter |
| Slow Shutter Speed | 1/15 ~ 1/32000 |
| Stream Speed | Up to 30fps at all resolutions |
| Test Video Output | Local video output CVBS 1.0V p-p (75O), 16:9 aspect ratio |
| Total Pixels | 1928 (H) x 1088 (V) 1945 (H) X 1109 (V) |
| Veritcal Field of View (VFOV | 20° ~ 51° |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | MJPEG |
| Video Management Software | DMP, DW Spectrum IPVMS, Any ONVIF conformant CMS |
| Warranty | 5 Year Warranty |
| Web Viewer | Windows OS, Mac OS, Linux OS, Internet Explorer browser, Google Chrome browser, Mozilla Firefox browser, Safari browser |
| Weight | 1.12 lbs (0.51kg) |
| Wide Dynamic Range (WDR) | True WDR 120dB |

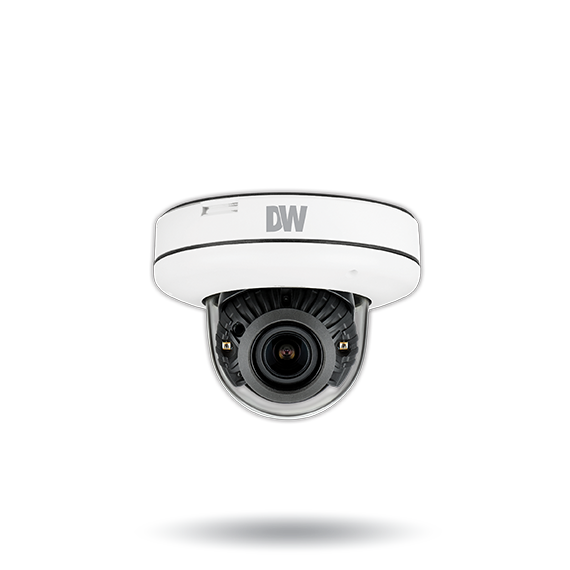

The 2.1MP Vandal Dome (DWC-MV82WiATW) is engineered for demanding surveillance environments, delivering high-resolution video with real-time performance. This MEGApix IVA+ IP camera combines cutting-edge video analytics with a robust design, suitable for installation in vulnerable locations.
Equipped with advanced features, including a vari-focal auto-focus lens and superior low-light capabilities, this camera guarantees reliable monitoring, day or night. Its NDAA compliance and ONVIF conformity further ensure compatibility with existing systems, making it an ideal choice for professional installations.
- 2.1MP/1080p resolution at 30fps, ensuring crystal-clear images
- Star-Light Plus+ technology for vivid color video in near-dark conditions
- Intelligent Video Analytics (IVA) with real-time detection of people and vehicles
- Seamless integration with DW Spectrum IPVMS for effortless management
- 2.8~12mm vari-focal p-iris lens featuring motorized zoom and auto-focus
- True Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes
- Triple codec support (H.265/H.264/MJPEG) for versatile streaming options
- Smart IR+ technology for effective night-time surveillance up to 100 feet
- CleanView+ self-cleaning dome for reduced maintenance and improved clarity
- Robust IP66 and IK-10 ratings, ensuring weather resistance and impact protection
- 5-year warranty, assuring long-term reliability and peace of mind
Elevate your surveillance capabilities with the DWC-MV82WiATW, where performance meets resilience in every installation.
