Description

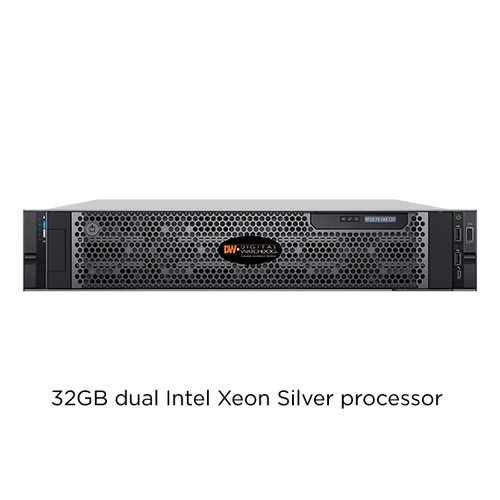

This dual processor Blackjack Rack+ server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features dual Intel Xeon processors, 32GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 192TB raw internal storage with RAID5 and is ONVIF conformant The server comes complete with a 5-year, on-site, Next Business Day**, Keep Your Hard Drive warranty to ensure peace of mind. ** After remote diagnosis.
Product Feautres :
- Supports ONVIF conformant IP cameras
- Storage options 64-192TB raw internal storage with RAID5
- Hot-Swappable HDDs
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Intel Xeon processor
- Dual network ports
- Windows 10, Ubuntu Linux, Windows Server 2019 OS on NVMe SSD, RAID1
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual-stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL listed
- NDAA/TAA compliant
- 5 year warranty, next business day on-site hardware service*, keep your hard drive - *after remote diagnosis
Files:
Specifications:
| Accessories | Keyboard, Mouse |
| Audio in/out | 1 output |
| Backup | Network backup via DW Spectrum IPVMS |
| CERTIFICATION | CE, FCC, RohS, NDAA Compliance Certification, ONVIF Conformant |
| Compression | H.264, H.265 |
| CPU | Dual Intel Xeon Silver processor |
| Dimensions | 17.32” x 15.66” x 2.79” (440 × 397.8 ×71 mm) |
| Display Modes | Unlimited, Sequence, Customizable |
| Display Speed | Up to 30fps per channel |
| Form Factor | Rack mount |
| Included IP licenses | 8 |
| Local Video Output Resolution | HD 1080p |
| Local Video Outputs | True HD, DVI, 1 display output at a time, 4x Mini DisplayPort outputs |
| Max HDD Bay | 12x SATA HDD |
| Max video storage rate (Mbps) | 600Mbps |
| Maximum Storage | 192TB RAID0, 1 5, 6, 10 available |
| Memory | 32GB |
| Operating System | Windows10, Linux Ubuntu 16.04 LTS, Windows Server |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| OS on SSD | 2x 240GB SSD (RAID1 mirrored) |
| Performance Features | RAID |
| Playback Functions | Timeline, Calendar, Event search, Thumbnail search, Smart motion search |
| Power Consumption | 750W dual power, Redundant power supply, A UPS is recommended |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| PTZ control | ONVIF |
| Rail kit | Included |
| Recording Modes | Continuous, Motion detection, Motion + low res always |
| Remote Software | DW Site Viewer for Apple TV, DW Spectrum Mobile App, Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI), USB mouse (included) |
| USB interface | Yes |
| Video Card | on-board Intel Graphics |
The Blackjack RACK, 80TB (DW-BJRR2P80T) is engineered for demanding video surveillance needs, offering exceptional performance in recording high-resolution IP camera feeds with unparalleled throughput of up to 600Mbps. This 2U rack-mounted server, compliant with NDAA/TAA, ensures reliability and peace of mind.
Equipped with dual Intel Xeon processors and 32GB of memory, the Blackjack Rack+ efficiently handles massive data streams. With support for up to 192TB of raw internal storage in a RAID5 configuration and dual power supplies, it guarantees uptime and secure data protection. Ideal for professional installers and technical users, it comes pre-loaded with DW Spectrum IPVMS, offering eight recording licenses without annual fees for seamless scalability.
- Supports ONVIF conformant IP cameras
- Offers 64-192TB raw internal storage with RAID5
- Features hot-swappable HDDs for easy upgrades
- Incorporates redundant power supply for continuous operation
- Includes dedicated GPU for efficient client application configuration
- Comes with dual network ports for improved connectivity
- OS options include Windows 10, Ubuntu Linux, and Windows Server on NVMe SSD
- Seamless hosting of DW Spectrum for setup and recording
- Includes fully transferable one-time recording licenses
- No ongoing maintenance fees, ensuring cost-effective operation
- Simplicity in enterprise scalability and auto device discovery
- Offers dual-stream recording capabilities
- Rail kit, USB mouse, and keyboard included for immediate installation
- Assembled and tested in the USA, ensuring high-quality standards
- Backed by a 5-year warranty with next business day, on-site hardware service*
Elevate your video surveillance capabilities with the Blackjack RACK, offering unmatched performance for installers focused on delivering superior protection and reliability.
