Description

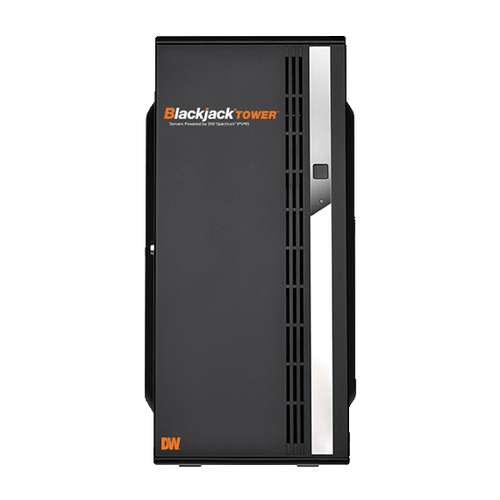

Blackjack Tower+ servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10 or Linux Ubuntu OS on a separate SSD. Hardware features include an Intel 9th generation processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come preloaded with DW Spectrum IPVMS and four complimentary recording licenses, provide up to 112TB internal storage, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty. All Blackjack Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included. For additional license part numbers click here
Product Feautres :
- Supports all ONVIF conformant IP cameras
- Up to 112TB internal storage
- Hot-swappable HDDs
- OS on SSD
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- 1x true HD, 1x DVI, 1x DisplayPort for local configuration
- Dual network ports
- Windows 10 and Ubuntu Linux OS options
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual-stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
- 5 year limited warranty
Files:
Specifications:
| Accessories | Keyboard, Mouse |
| Backup | Network backup via DW Spectrum IPVMS |
| CERTIFICATION | NDAA Compliance Certification, ONVIF Conformant, CE, FCC, RohS, UL Listed |
| Compression | H.264, H.265 |
| CPU | Intel i7 processor |
| Dimensions | 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) |
| Display Modes | Unlimited, Sequence, Customizable |
| Display Speed | Up to 30fps per channel |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Form Factor | Full-size Tower |
| Included IP licenses | 4, 8 |
| Local Video Output Resolution | HD 1080p |
| Local Video Outputs | True HD, VGA, DVI, 1 display output at a time, 1 DisplayPort, For initial configuration and server management |
| Max HDD Bay | 7 x SATA HDD |
| Max video storage rate (Mbps) | 600Mbps |
| Maximum Storage | 70TB |
| Memory | 16GB |
| Operating System | Linux OS, Windows10, Linux Ubuntu 16.04 LTS |
| Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH |
| OS on SSD | 240GB SSD |
| Playback Functions | Timeline, Calendar, Event search, Thumbnail search, Smart motion search |
| Power Consumption | 500W, A UPS is recommended |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Product Type | Recorders |
| PTZ control | ONVIF |
| RAID Options | No RAID |
| Recording Modes | Continuous, Motion detection, Motion + low res always |
| Remote Software | DW Mobile Plus, DW Site Viewer for Apple TV, DW Spectrum Mobile App, Cross-platform - Windows, Linux Ubuntu and Mac |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS |
| USB interface | Yes |
| Video Card | on-board Intel Graphics |
