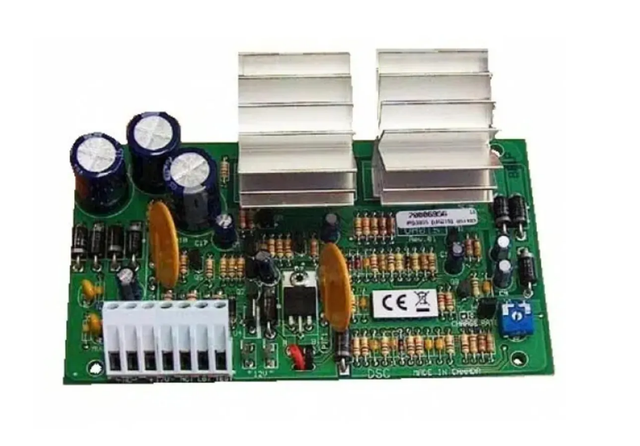

DSC | Backup Analog Power Supply Board – 13.8V / 3A with Battery Charging Output and AC/Low Battery Signaling | PS3085

No reviews yet Write a Review
SKU:
DSC-PS3085

Description

The Backup Analog Power Supply Board (13.8V / 3A) is a reliable solution for powering 12V systems with integrated backup battery support. Designed as a PCB-mounted analog power supply, it provides stable regulated voltage while also featuring a dedicated output for charging backup batteries.

With an input voltage of 16V AC (via 130VA transformer), the unit ensures continuous operation and automatically switches to battery backup in case of AC failure. It also includes signaling outputs for AC power loss, low battery, and battery presence, making it a dependable choice for security, communication, and control systems requiring uninterrupted power.

Key Features:

  • Backup analog power supply board for 12V systems

  • Output voltage: 13.8V DC (6.9V DC option)

  • Maximum current output: 3A continuous

  • Dedicated charging output for backup battery

  • Supports backup batteries up to 24Ah capacity

  • Signaling outputs for AC failure, low battery, and battery presence

  • Test function and charging current limitation for safe operation

  • Compact PCB design for integration into control panels

The DSC Backup Analog Power Supply Board (13.8V / 3A) delivers reliable and uninterrupted power for 12V systems, ensuring operational integrity when you need it most. This compact yet robust PCB-mounted power supply is designed specifically for professional installers looking to enhance their security and communication systems.

Featuring a dedicated output for backup battery charging, this power supply guarantees that your systems remain operational even during AC failures. With an input voltage of 16V AC, and the capability to automatically switch to battery backup, the DSC power supply provides unparalleled reliability and stability, making it an ideal choice for critical applications.

  • Backup analog power supply board for 12V systems
  • Output voltage: 13.8V DC (with 6.9V DC option available)
  • Maximum current output of 3A continuous for high-demand environments
  • Dedicated charging output to support backup battery integration
  • Compatible with backup batteries up to 24Ah capacity
  • Integrated signaling outputs for AC power loss, low battery, and battery presence for real-time monitoring
  • Test function and charging current limitation designed for safe operation
  • Compact PCB design allows for seamless integration into existing control panels

Choose the DSC Backup Analog Power Supply Board to ensure your systems remain powered and secure during power outages. Its impressive features and reliable performance provide peace of mind for professionals tasked with critical installations.

Extra Information

Brand:
DSC
Country of Origin:
Mexico
Input Voltage:
16V AC / 50Hz (via transformer 120–130 VA)
Output Voltage:
13.8V DC (or 6.9V DC selectable)
Maximum Charging Current:
2A
Dimensions:
145 × 83 × 56 mm (W × H × D)
