Description

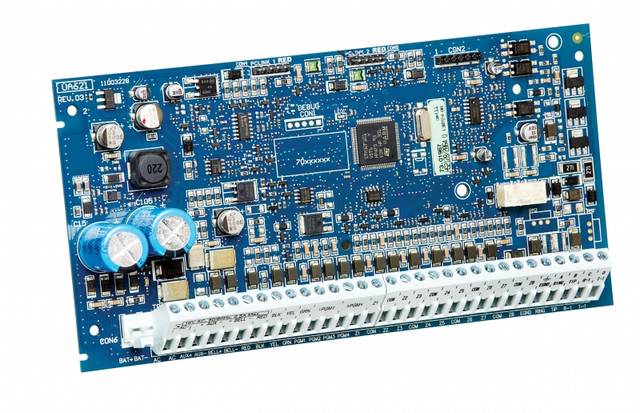

The DSC HS2128PCBCP01 PowerSeries Neo control panel board delivers advanced intrusion protection for both residential and large-scale commercial installations. With 8 zones on-board, expandable to 128 wired and wireless zones, this hybrid system combines the reliability of hardwired security with the unmatched flexibility of DSC’s PowerG wireless technology.
Designed with scalability, performance, and innovation, the HS2128 board provides up to 1,000 user codes, 8 partitions, and powerful event logging, making it an ideal solution for high-demand security environments. Its advanced CP-01 compliant software ensures industry-standard false alarm reduction, while support for interconnected smoke detectors enhances life-safety measures.
Key Features:
-
8 On-board zones, expandable up to 128 (wired or wireless)
-
Hybrid support with DSC PowerG wireless technology
-
4 PGM outputs, expandable up to 148 with HSM2204/HSM2208 modules
-
Supports up to 16 supervised keypads with keypad zones
-
8 partitions for flexible area protection
-
1,000-event buffer for accurate event tracking
-
User codes: up to 1,000 (HS2128E) / 95 (HS2128 standard)
-
Interconnected smoke detector support (v1.2) for enhanced fire safety
-
CP-01 compliant for advanced false alarm prevention
