Description

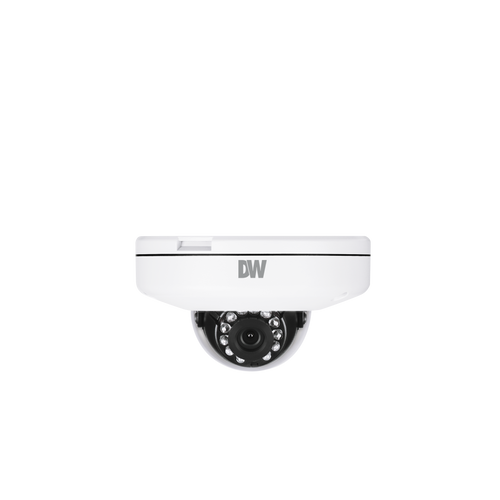

This MEGApix IVA+ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 4.0, 6.0 and 8.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus+ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. Â Â Â Â Â Â
Product Feautres :
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus+ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens (DWC-MF5Wi4TW)
- 6.0mm fixed lens (DWC-MF5Wi6TW) (coming soon)
- 8.0mm fixed lens (DWC-MF5Wi8TW) (coming soon)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR+ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR+ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliantÂ
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Files:
Specifications:
| 3D digital noise reduction | 3D DNR |
| Alarm in/out | 1 input, 1 output |
| Audio compression | G.711 |
| Audio in/out | 1 input, 1 output |
| Auto gain control | Auto |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth), Smart bitrate control – CVBR |
| Compliance | CF, FCC, RoHS, ONVIF, NDAA, TAA, UL Listing |
| Day and night | Auto day/nighy, Night (B/W) |
| De-fog | Yes |
| Dimension | 4.92" x 2.9" (125 x 74.3 mm) |
| Features | Star-Light Plus |
| Focal Length | 8.0mm |
| Focal Length | 4.0mm, 6.0mm, 8.0mm |
| Horizontal Field of View (HFOV) | 37.8° |
| Horizontal Field of View (HFOV) | 39°, 51°, 81° |
| Housing | Vandal Dome |
| IK rating | IK10 Rated |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Intelligent Video Analytics | IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IP | IPv4, IPv6 |
| IP rating | Weather Resistant (IP66) |
| IR Distance | 50" range Smart IR+ |
| LAN | RJ45 (10/100Base-T) |
| Lens Type | Fixed Lens |
| Materials | Metal, Polycarbonate Dome |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.16 lux (color) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Off, x2, x3, x5, x6, x7.5, x10, x4 |
| Notifications | FTP server, SD card recording, Email |
| Operating Humidity | 10-90% (non-condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operational Features | True D/N |
| Power Consumption | DC12V: max 5.9W, 491.6mA, PoE: max 7.2W |
| Power Requirements | 12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included) |
| Privacy Zones | 16 programmable privacy masks |
| Product Type | Cameras |
| Protocols | RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, DDNS, Zeroconf (AutoIP), DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP) |
| Resolution | 5MP |
| Resolution | H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF, H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Security | HTTPS (TLS), IP filtering, 802.1x, Digest authemtication (ID/PW) |
| Shutter Speed | Auto, Manual, Slow Shutter, Anti-Flicker |
| Slow Shutter Speed | 1/15 ~ 1/32000 |
| Stream Speed | Up to 30fps at all resolutions |
| Test Video Output | Local video output CVBS 1.0V p-p (75O), 16:9 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| Veritcal Field of View (VFOV | 22° |
| Veritcal Field of View (VFOV | 22°, 29°, 43° |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, Any ONVIF conformant CMS |
| Warranty | 5 Year Warranty |
| Web Viewer | Mozilla Firefox browser, Safari browser, Windows OS, Mac OS, Linux OS, Internet Explorer browser, Google Chrome browser |
| Weight | 0.92 lbs (0.42kg) |
| Wide Dynamic Range (WDR) | True WDR 120dB |
The DWC-MF5Wi8TW MEGApix IVA+ IP camera delivers exceptional video surveillance with 5MP resolution at real-time 30fps, making it an invaluable tool for installation in any security system.
This camera combines advanced video analytics with NDAA compliance, ensuring reliable detection and classification of people and vehicles. The IVA+ upgrade enhances analytical capabilities, while the ultra low-profile vandal dome housing offers durability against challenging conditions.
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus+ color in near-total darkness technology
- Intelligent Video Analytics (IVA pre-loaded models)
- Extended Intelligent Video Analytics (IVA+ pre-loaded models)
- Seamless integration with DW Spectrum IPVMS for IVA rules control
- Minimized false alarms
- Optimized recording storage with smart recording logic
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR+ with intelligent camera synchronization
- Programmable privacy zones and Auto gain control (AGC)
- Micro SD/SDHC/SDXC card slot (card not included)
- IP66 environmental-rated and IK10 impact-resistant
- 5-year warranty for added peace of mind
The DWC-MF5Wi8TW is the ultimate choice for professional installers seeking a robust and high-performance surveillance solution that exceeds expectations in any environment.
