Description
Red 4 Features
Each unit is equipped with a fully supervised power circuit that monitors the battery and overall controller health and even charges the battery. Users receive important system notifications via text and email.
Self-Discoverable - Red 4 is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it is not necessary to enter the IP address because the device is self-discovered.
Scalability - Whether you need four doors or a thousand, the Red 4 controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.
Plug ‘n’ Play Connectivity - All io devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect up to a thousand doors on a single platform.
Four Reader Input Ports - Four input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The additional reader inputs can also be assigned to trigger automated events.
Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.
Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including: overcurrent events, primary power connectivity, battery connectivity, and battery charge status.
Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than the standard Wiegand protocol and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.
Specifications
Connections
- Removable screw-down terminals
- Polarized DC-only Power Supply Input
- Industrial-grade 2Amp Form-C Relays (4 Doors)
- Reader Input (4)
- 4 Input A
- 4 Input B
- Additional power and ground connections for devices other than door connectors
Communication Options
- Ethernet
- WiMAC wireless mesh (2.4 GHz / 802.15.4)
- Encryption: AES 128-bit
- Wireless Range: 1-mile line of sight / 450 ft. indoor average
Environmental
- Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
- Humidity: 0%–95% relative humidity noncondensing

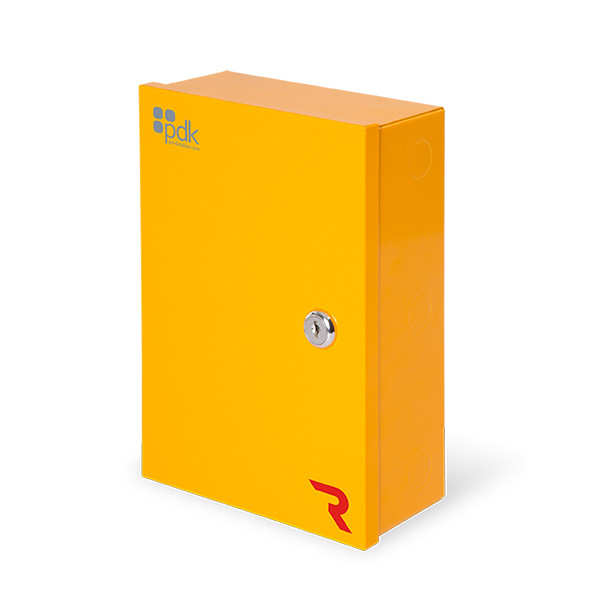

Enclosure
- Dimensions (W x H x D) 10.4375” x 7.625” x 3”
- Metal lockable security can (indoor use only)
Weight
- 3 Lbs.
Compliance
- Conforms to UL 294
The Four Door Controller is designed for installations demanding robust, scalable, and secure access control solutions. This advanced controller integrates seamlessly with modern security systems, providing unparalleled monitoring and management capabilities.
Equipped with sophisticated features like Ethernet connectivity, OSDP protocol support, and optional wireless and PoE++ capabilities, the Four Door Controller ensures your security system remains efficient and effective in any environment. Its state-of-the-art battery monitoring not only maintains optimal performance but also sends alerts to users via text and email.
- Four input ports to efficiently manage both entry and exit security.
- Self-discoverable integration with Cloud Node for quick setup.
- Fully supervised power circuit with automated battery charging and health monitoring.
- Scalable solution accommodates expansion from four doors to a sizable network.
- Plug ‘n’ Play design simplifies installation of all io devices.
- Supports AES-128 encrypted OSDP for secure two-way communication.
- Robust environmental durability with operational temperature range of -20ºC to +60ºC.
- Industrial-grade construction ensures reliability and compliance with UL 294 standards.
Enhance your security infrastructure with the Four Door Controller, a powerful tool tailored for professional installers who require reliable performance, easy scalability, and the latest in secure technology.
