Description
Easiest Installation Ever
SmartMount system, all internal antennas, on-screen Installation Wizard
QuadSound Audio Streaming
Bluetooth Audio from your Smart Phone using four 4 watt speakers
Best Built-in Camera
8MP 120° wide angle camera w/ FlexTilt. Peek-in, Disarm Photos, Alarm Videos
Better All-In-One Range
LTE and WiFi Dual-Path, Dual SRF featuring PowerG, Z-Wave 700 Series, Bluetooth 4.2
Best Differentiating Features
Bluetooth Touchless Disarming, Live View, Live Answer, Built-in Glass Break
Best Integrations
Best in class Residential, Commercial, MDU, Builder, Wellness support
Specifications
| Items | IQ Panel 4 | |
|---|---|---|
| LCD Display | 7 inch LCD | |
| 1280 x 800 pixels | ||
| 300 cd/m2 | ||
| 24bit, 16.9 Million Colors | ||
| Touchscreen | Capacitive glass multi-touch | |
| User Codes | Role-based (Dealer, Installer, Master, User, Guest, Duress) | |
| Network | WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability | |
| LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26) | ||
| Z-Wave Plus (700) | 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.) | |
| PowerG | 915 MHz Long Range Secure Encrypted 2-Way Wireless | |

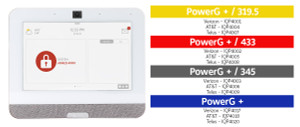

| Security RF | Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz | |
| Bluetooth | Bluetooth Low Energy (BLE) 4.2 | |
| Flash Memory | 16GB NAND Flash | |
| LED Indicator | Triple full color RGB LED | |
| Speaker/Siren | QuadSound 4x front-facing 4W speakers and 85-decibel siren | |
| Camera | 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment | |
| Microphone | 3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation | |
| Tamper | Dual panel and wall tamper with spring release and Smash and Grab reporting | |
| Battery | Rechargeable Lithium Ion 3000mAh Rated for over 24 hours | |
| Buttons | Single wake/sleep button, all user controls through touch interface | |
| Mechanical | 6.1"H x 7.5"W x 1"D (155mm x 191mm x 26mm) | |
| Power Supply | 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL | |
| Mount | SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately | |
| Certifications | FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) | |
| IC: 11205A-QSIQPANEL4 | ||
| UL-985, UL-1023, UL2610, ULC-S545, ULC-S304 | ||
| Temperature | 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only | |
| -20°C to 50°C, -4°F to 122°F | ||
| Operating System | Security & Home Automation Touch and Swipe Interface | |
| Processor | Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash |

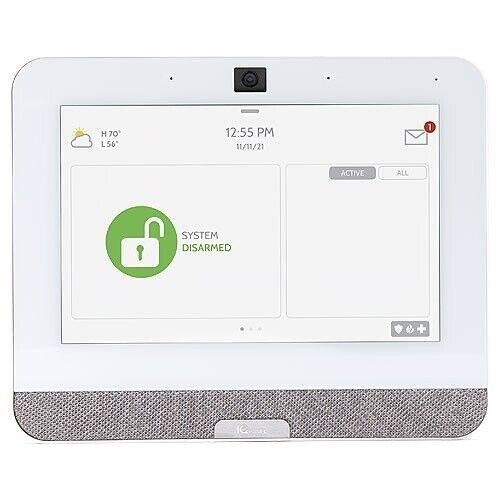

The Qolsys IQ Panel 4 (AT&T) stands out as the pinnacle of home security and automation technology, designed for installers seeking rapid deployment and unmatched performance.
Exclusively engineered for residential and commercial applications, this all-in-one panel combines advanced features with user-friendly controls. Its SmartMount system simplifies installation, while the built-in Installation Wizard guides you through each setup step with ease.
- QuadSound Audio Streaming with four powerful 4-watt speakers for immersive sound
- 8MP camera with a 120° wide-angle view and FlexTilt for unparalleled monitoring
- Dual-path communication via LTE and WiFi for reliable connectivity
- Configurable with PowerG, Z-Wave 700 Series, Bluetooth 4.2 for extensive device compatibility
- Bluetooth touchless disarming and live video support enhance security
- Rich user role management for customized access levels across various user types
- High-performance processing powered by a Qualcomm Snapdragon 8 core processor
- Durable and sleek design fits seamlessly into any home or office environment
Elevate your security offerings and simplify installation with the Qolsys IQ Panel 4, redefining smart home capabilities for installers and ensuring ultimate peace of mind for users.
