Description
Each unit is equipped with a fully supervised power circuit that monitors the battery and overall controller health and even charges the battery. Users receive important system notifications via text and email.
Self-Discoverable - Red Gate Controller is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it is not necessary to enter the IP address because the device is self-discovered.
Scalability - Whether you need two doors or a thousand, the Red Gate Controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.
Plug ‘n’ Play Connectivity - All io devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect up to a thousand doors on a single platform.
Two Reader Input Ports - Two input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.
Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.
Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including: overcurrent events, primary power connectivity, battery connectivity, and battery charge status.
Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than the standard Wiegand protocol and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.
Specifications
Connections
- Removable screw-down terminals
- Polarized DC-only Power Supply Input
- Industrial-grade 2Amp Form-C Relays (2 Doors)
- Reader Input (2)
- 2 Input A
- 2 Input B
- Additional power and ground connections for devices other than door connectors
Communication Options
- Ethernet
- WiMAC wireless mesh (2.4 GHz / 802.15.4)
- Encryption: AES 128-bit
- Wireless Range: 1-mile line of sight / 450 ft. indoor average
Environmental
- Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
- Humidity: 0%–95% relative humidity noncondensing
Enclosure
- Dimensions (W x H x D) 10.4375” x 7.625” x 3”
- Metal lockable security can (indoor use only)
Weight
- 3 Lbs.
Compliance
- Conforms to UL 294

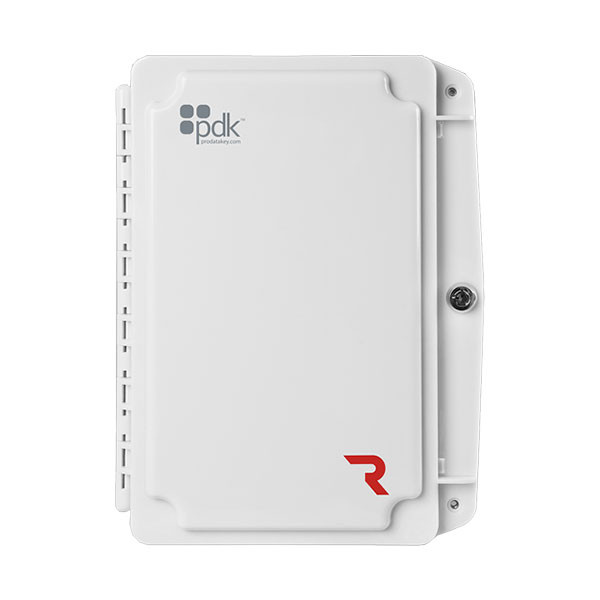

Optimize your access control solution with the NEMA 4X Enclosure, Two Door Controller featuring Ethernet, OSDP, Wiegand, and comprehensive battery monitoring capabilities. Designed for installers seeking a robust and scalable system, this controller guarantees seamless network integration while delivering advanced security functionality.
This controller stands out with its self-discoverable feature, allowing automatic recognition by the Cloud Node upon connection. Whether you are managing two doors or scaling up to a thousand, the Red Gate Controller provides unparalleled flexibility and scalability, coupled with WiMAC technology for adding doors effortlessly.
- Fully supervised power circuit for real-time battery health monitoring and charging.
- Self-discoverable connectivity, eliminating the need to manually enter IP addresses.
- Scalability from two doors to an extensive network of over a thousand doors.
- Plug ‘n’ play installation simplifies system expansion and integration.
- Two reader input ports to enhance security tracking and automated event triggering.
- Detailed battery statistics and charging capabilities for uninterrupted operation.
- Intelligent monitoring of network and wireless connectivity with real-time alerts.
- OSDP protocol support for enhanced security through AES-128 encryption and bidirectional communication.
Elevate your security infrastructure with the NEMA 4X Enclosure, ensuring a reliable, scalable, and secure access control experience for all installations.
