Uniview | IP Bullet, 1/3" 4MP PS CMOS, 30fps@4MP(2688x1520), 2.8mm, 98ft IR, 120dB WDR, Micro SD (512GB), Built-in Mic, DC12V (6.4W), PoE (IEEE 802.3af), IP67.Compatible with: TR-JB05-B-IN, TR-UP06-C-IN | IPC2124SR-ADF28KM-H

No reviews yet Write a Review
SKU:
UNV-IPC2124SR-ADF28KM-H

Description

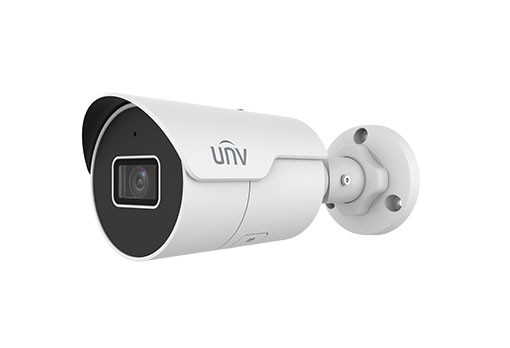

Uniview IPC2124SR-ADF28KM-H 4MP Mini Bullet Camera

The IPC2124SR-ADF28KM-H is a compact 4MP fixed lens bullet camera offering Easystar low-light performance, built-in mic, and a 2.8mm lens for wide-angle coverage. With Smart IR up to 50m, IP67 weather resistance, and Ultra265 compression, it’s an ideal choice for general surveillance needs in both indoor and outdoor settings. NDAA compliant and easy to install with PoE support.

Specifications

  • Resolution: 4MP (2688×1520) at 30fps
  • Lens: 2.8mm fixed, 97° horizontal field of view
  • WDR: 120dB True WDR
  • Low Light: 0.003 lux with Easystar sensor
  • IR Distance: Up to 50m with Smart IR
  • Compression: Ultra265, H.265, H.264, MJPEG
  • Smart Detection: Human body-based intrusion and cross-line detection
  • Audio: Built-in microphone, G.711A/U support
  • Edge Storage: Up to 512GB Micro SD
  • Ingress Protection: IP67
  • Power: 12V DC or PoE (802.3af), max 5.6W
  • Dimensions: 190 × 73 × 71 mm
  • Weight: 0.40kg (0.88lb)

Compatibility & Accessories

  • Mounts: TR-JB05-B-IN (junction box), TR-UP06-C-IN (pole), TR-UC08-C (corner)
  • Software: Compatible with EZStation (PC/Mac), EZTools, and UNV Link mobile app
  • Integration: ONVIF (Profiles S, G, T), SDK and API supported
  • Browser Support: IE, Chrome, Firefox, Edge (plugin and plugin-free modes)

Software Downloads

EZStation: Uniview’s desktop video management software used to view, manage, and configure Uniview cameras and NVRs. Offers full access to playback, AI rules, license plate data, and more.
Download EZStation

EZTools: Installer utility that detects and configures Uniview IP devices across the LAN. Supports batch operations, IP address changes, and firmware updates.
Download EZTools

UNV Link App: Mobile app for live view, push notifications, playback, and device configuration. Designed for end-users and installers managing Uniview systems remotely.
UNV Link for iOS | UNV Link for Android

Extra Information

Brand:
Uniview
