Description
Advanced Linux-Based embedded NVR, 2TB, Supports 16 2.1MP cameras@30fps (1080P) up to 4K, ONVIF, 16 port PoE switch built in, H.264/H.265, HDMI, VGA, 8 Sensor Input, 4 Relay Output, 1ch Audio Input, 1ch Audio Output, Pathfinder Peer to Peer(P2P) remote connection, Event Notifications via Email, Automatic Device Discovery, C3 Central Management Software Up to 128CH, Free Mobile Apps for iPhone, iPad, iPod, Android Smart Phones and Tablets, MAC Compatible Remote Software, System Analysis with Real Time System, Network, and PoE Status Monitoring, Drag and Drop Camera Pla8ement, One Touch Video Backup, Reverse Playback, & Emergency Recording, Simple & Free DDNS Support for Remote Management, Help Menu on Major Functions, Auto & Manual Firmware Upgrade Available, Import/Export Configuration between Multiple DVRs, USB Mouse and GUI Control, PTZ, NDAA, TAA, 5 Year Limited Warranty.
Product Feautres :
- Complete installation, setup and camera configuration in minutes!
- CCIP+ system encryption via TLS protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras at real-time 30fps up to 4K (3840×2160), with 160Mbps maximum throughput
- Local power for up to 16 IP cameras via resident PoE+ switch
- DW Witness+ turns a smartphone or tablet into a surveillance camera
- PathFinder+ easy end-to-end remote connection with NAT Traversal (STUN/TURN) support
- Automatic device discovery
- Compatible with ONVIF cameras
- 0-32TB storage options
- Transfer real-time data using Real Time Streaming Protocol (RTSP)
- Snapshot Notify+: Interval camera image verification sent to an email
- Remote management with C3+ CMS for Windows and Mac
- Event camera group recording
- System analysis with real-time system, PoE and network status monitoring
- Event notifications via email, text and C3+ CMS and push notifications to mobile devices
- Mobile Application for iOS and Android devices
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
- True HD and VGA simultaneous output support
- Compatible with DW Spot+ Monitoring module for Public View Monitors
- 1 audio input, 1 audio output
- 8 sensor inputs, 4 relay outputs
- Advanced H.265/H.264 Linux embedded NVR
- NVR calculation and auto-recording configuration
- Screen saver to protect monitor screen
- Import/export configuration between multiple NVRs
- Auto or manual firmware upgrade available
- NDAA/TAA compliant
- 5 year limited warranty

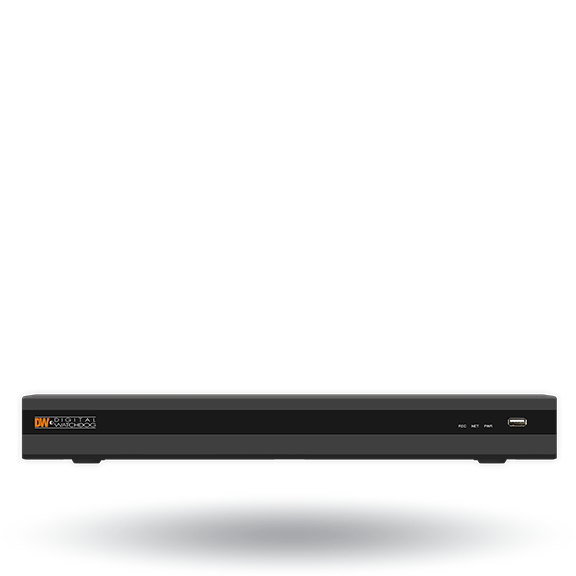

The VMAX IP G4 16-channel PoE NVR is a robust and sophisticated surveillance solution designed for both professional installers and tech-savvy users. Equipped with 2TB of storage, this embedded NVR supports up to 16 high-resolution 2.1MP cameras at 30fps, ensuring crystal-clear video quality for all your monitoring needs. Its advanced capabilities allow for seamless integration with existing systems, making it an ideal choice for a variety of installations.
This state-of-the-art NVR features a built-in 16 port PoE switch, providing local power to all connected IP cameras, which simplifies the installation process significantly. With support for ONVIF compatibility, you can easily connect third-party devices. Whether you require HDMI or VGA output, the VMAX offers both for convenient viewing options.
- Complete installation, setup and camera configuration in minutes!
- CCIP+ system encryption via TLS protects your surveillance system from out-of-network attacks.
- Record and manage single-sensor IP cameras at real-time 30fps up to 4K (3840×2160), with 160Mbps maximum throughput.
- Local power for up to 16 IP cameras via resident PoE+ switch.
- DW Witness+ turns a smartphone or tablet into a surveillance camera.
- PathFinder+ easy end-to-end remote connection with NAT Traversal (STUN/TURN) support.
- Automatic device discovery.
- Compatible with ONVIF cameras.
- 0-32TB storage options available.
- Real-time data transfer using Real Time Streaming Protocol (RTSP).
- Event notifications via email, text and push notifications to mobile devices.
- Mobile Application for iOS and Android devices.
- 5-year limited warranty ensures longevity and reliability.
