ZKTeco USA | Armatura Omni Slim Mullion Dual-Tech Multi-Biometric Access Control Reader | AMT-OMNI-AC20-LHF

No reviews yet Write a Review
SKU:
ZK-AMT-OMNI-AC20-LHF

Description

Omni Readers bring modern, touchless access to the door. Each device combines palm & face biometrics with cards, QR codes, and PINs in one device. They can run standalone with full access logic at the door, or integrate with existing systems over secure OSDP. With PoE, weatherproof design, and a built-in intercom, Omni readers simplify installs while raising security.

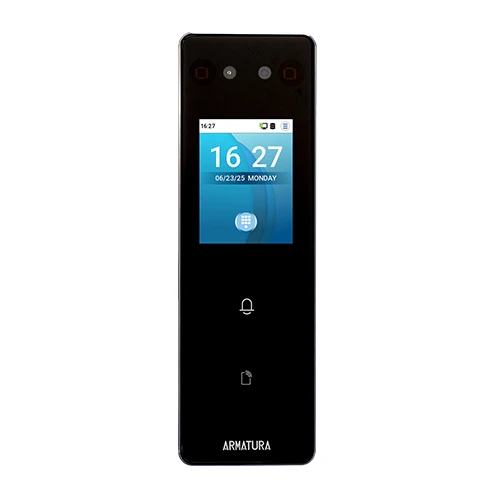

About the OmniAC20-LHF: The OmniAC20-LHF is the slim mullion-mount model with dual-frequency card support. It reads both LF (125 kHz) and HF (13.56 MHz) credentials, making it ideal for sites that use legacy badges like HID® Prox as well as modern smart cards such as iCLASS®, DESFire®, and Seos®.

Looking for another product? Click here to see the rest of the Omni Series.

  • Dual-tech card support: Works with LF (125 kHz) and HF (13.56 MHz) cards for maximum compatibility.
  • Touchless biometrics: Fast palm & face authentication strengthens security and reduces tailgating.
  • Visitor flexibility: Add QR codes and PINs for guests or contractors without issuing cards.
  • Standalone or integrated: Manage users and schedules on-device, or connect to your access panel.
  • Video intercom: Two-way video and audio adds visitor management capability at the door.
  • PoE + IP66: Easy installation and outdoor readiness reduce total cost of ownership.
  • Secure OSDP: Advanced encryption protects credential and communication data.
  • Cloud-managed option: Connect to Cielo365 for remote administration and reporting.

In short: Choose OmniAC20-LHF for a slim mullion reader that supports both LF and HF cards alongside advanced biometrics and intercom.

Download Specs

Extra Information

Brand:
ZKTeco USA
Primary Power:
12 VDC (3A min @12V)
RS485 connection:
Port 1: RS485 standard / OSDP V2.1.7
CPU:
1.2 GHZ Quard Core ARM Processor
NPU:
2.4 TOPS NPU
Memory:
8 GB Flash + 1 GB RAM
Camera:
Face Automatic Exposure | Palm Automatic Exposure | Face tracking | Palm tracking | WDR | HDR | 50Hz to 60Hz Automatic Adaption | Dual Camera | CMOS 2MP (Output image 720P*960P)
Primary Host Communication:
Ethernet: 10/100 Mbps, auto MDI/ MDIX | Complies with TLS 1.2 for end to end secure communication channel
Ethernet network connection:
Port 1:10/100 Mbps, auto MDI/MDIX
Data Protection:
Complies with TLS 1.2 for end to end secure communication channel (Secured Communication between Standalone Terminal & Server) | AES128 (Secured Communication between Standalone Terminal & OSDP Reader & Access Control Panel)
Number of Ports:
1*TCP/IP | 1*RS-485 | Input: 4ch TTL | Inputs Output: 1ch TTL | 3 relays
