A factory-terminated patch cord, tested and booted. Field-terminated patch leads are the most common cause of a channel failing certification, and at this price there is no reason to make them on site.

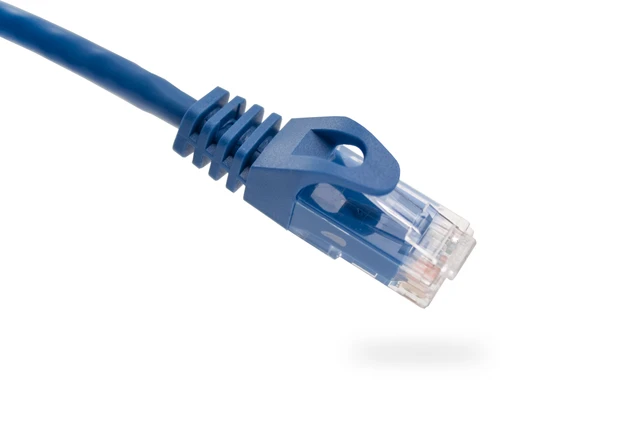

1 Foot CAT6 Patch Cable With Boot Blue
Supplied as Vertical Cable part 094-796/1BL. Full manufacturer specifications are linked in the Documents tab.
Features
- Category-6 Patch Cord with Boot & Protector
- 550MHz High-Performance Patch Cord
- CM Rated PVC Jacket
- 24AWG 4 pair
- Stranded Bare Copper Conductors
- Designed to exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards
- Unshielded RJ45 Modular Plugs
- 8P8C Gold Plated Pins 50U”
- 568B Wiring Color Code
- UL Listed, RoHS Compliant
About Vertical Cable
Vertical Cable is a US manufacturer and distributor of low voltage and fiber cabling. Parts are supplied to published specification with manufacturer spec sheets available, which matters when an installation has to be certified or handed over with documentation.
Brand:
Vertical Cable
Manufacturer part number:
094-796/1BL
Product type:
Patch cord
Colour:
Blue
Compliance:
RoHS compliant
What is the manufacturer part number?
Vertical Cable part 094-796/1BL. Quote this when cross-referencing against a specification or a bill of materials.
Is a manufacturer specification sheet available?
Yes. The Vertical Cable specification sheet for this part is linked in the Documents tab, which covers the full published performance and construction data.
