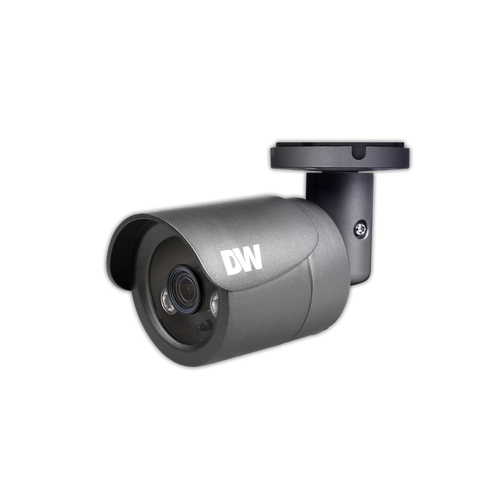

MEGApix 2.1MP/1080p bullet IP Camera with 4.0mm fixed lens and DMP integration and IR (DWC-MB72Wi4TDMP)

No reviews yet Write a Review
SKU:
DW-DWC-MB72Wi4TDMP

Description

The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in IP67-rated weather and tamper-resistant bullet housing. This camera is uniquely programmed for integration with a DMP solution. It is not compatible with DW Spectrum IPVMS and will not be recognized by a DW Spectrum recoding license. For DW Spectrum compatible models, click here.

Product Feautres :

  • 2.1MP/1080p 1/2.8" image sensor
  • Star-Light Plus color in near-total darkness technology
  • 4.0mm fixed lens
  • DMP integration
  • 100' Smart IR with intelligent camera sync
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • PoE class 2 and DC12V
  • UL listed
  • NDAA/TAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • 5 year warranty


Files:

DWC-MB72Wi4TDMP datasheet
DWC-M(P)B72Wi4T AE specifications
DWC-MB72Wi4TDMP CAD drawing
DWC-MB7_DMP series quick setup guide
DW IP Finder v4.4.14 for Linux OS
DW IP Finder v4.4.14 for Windows OS
Camera part numbering system
DW Accessories Chart
DWC-MB72Wi4TDMP UL certificate


Specifications:

3D digital noise reduction3D DNR
Auto gain controlAuto
ComplianceNDAA, TAA, CF, FCC, RoHS, ONVIF
Day and nightNight (B/W), Auto day/nighy
FeaturesStar-Light Plus
Focal Length4.0mm
Horizontal Field of View (HFOV)86 Degree
HousingBullet
Image sensor2.1MP/1080p 1/2.8" CMOS sensor
IP ratingWeather Resistant (IP67)
IR Distance100" range Smart IR
Lens TypeFixed Lens
MaterialsMetal
Minimum Scene Illumination in color0.09 lux (color), 0.0 lux (B/W)
Mirror/flipYes
Motion DetectionYes
Operational FeaturesTrue D/N
Power Requirements12 V DC, PoE, (Adapter not included)
Product TypeCameras
Resolution2.1MP/1080p
Video Compression TypeH.265, MJPEG, H.264
Video Management SoftwareDMP
Warranty5 Year Warranty

Extra Information

Brand:
DW
