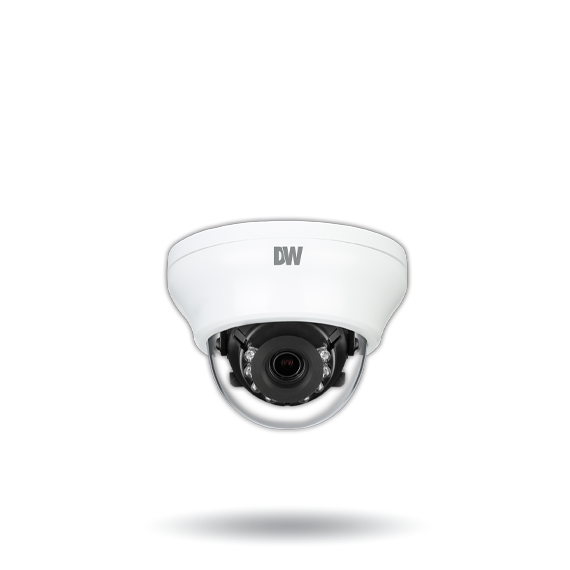

MEGApix 2.1MP/1080p indoor dome IP camera with 2.8mm fixed lens and IR (DWC-MD72Di28T)

No reviews yet Write a Review
SKU:
DW-DWC-MD72Di28T

Description

This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. The indoor dome camera includes a 2.8mm fixed lens and simultaneous H.265/H.264/MJPEG codec support and brings the capabilities of a robust camera in a small and discrete housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Product Feautres :

  • 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
  • 2.8mm fixed lens
  • Digital Wide Dynamic Range (D-WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 50' Smart IR with intelligent camera sync
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 2 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA compliant
  • 5 year warranty


Files:

DWC-MD72Di28T datasheet
DWC-MD72Di28T datasheet - French
DWC-MD72Di28T datasheet - Spanish
MEGApix Single-Sensor Brochure
DWC-MD72Di28T AE specifications
DWC-MD72Di28T CAD drawing
DWC-MD72Di28T quick setup guide
DWC-MD72Di28T user manual
2.1MP firmware vA8.2.1_20220502
DW IP Finder v4.4.14 for Linux OS
DW IP Finder v4.4.14 for Windows OS
Camera part numbering system
DW Accessories Chart
DWC-MD72Di28T UL certificate


Specifications:

3D digital noise reduction3D DNR
Auto gain controlAuto
ComplianceNDAA, TAA, UL Listing, CF, FCC, RoHS, ONVIF
Day and nightNight (B/W), Auto day/nighy
Horizontal Field of View (HFOV)109 Degree
HousingIndoor Dome
IR Distance50" range Smart IR
Lens TypeFixed Lens
MaterialsPlastic, Polycarbonate Dome
Minimum Scene Illumination in color0.25 lux (color), 0.0 lux (B/W)
Mirror/flipYes
Motion DetectionYes
NotificationsEmail, FTP server, SD card recording
Operational FeaturesTrue D/N
Power Requirements12 V DC, PoE, IEEE 802.3af Class 2, (Adapter not included)
Product TypeCameras
ProtocolsZeroconf (AutoIP)
Resolution2.1MP/1080p
Security802.1x, IP filtering, Digest authemtication (ID/PW), HTTPS (TLS)
SharpnessYes
Video Compression TypeH.265, MJPEG, H.264
Video Management SoftwareDW Spectrum IPVMS, Any ONVIF conformant CMS, DMP
Warranty5 Year Warranty
Web ViewerWindows OS, Mac OS, Linux OS, Internet Explorer browser, Google Chrome browser, Mozilla Firefox browser, Safari browser
White BalanceYes
