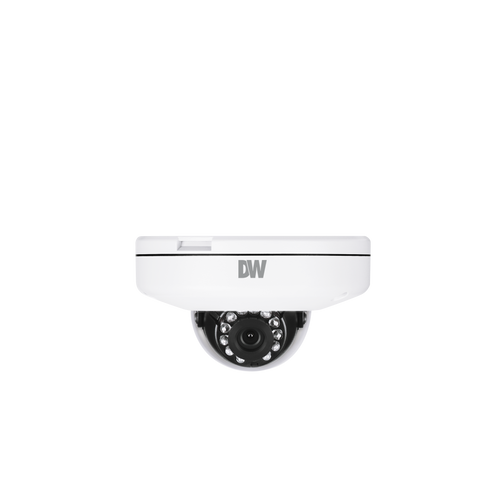

MEGApix 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm and fixed lenses and DMP integration and IR (DWC-MF2Wi4TWDMP)

No reviews yet Write a Review
SKU:
DW-DWC-MF2Wi4TWDMP

Description

The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP66-rated and IK10-impact-resistant ultra low-profile vandal dome housing. This camera is uniquely programmed for integration with a DMP solution. It is not compatible with DW Spectrum IPVMS and will not be recognized by a DW Spectrum recoding license. For DW Spectrum compatible models, click here.

Product Feautres :

  • 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus color in near-total darkness technology
  • 4.0mm fixed lens
  • DMP integration
  • 50' Smart IR with intelligent camera sync
  • Ultra low-profile vandal dome camera housing
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • PoE class 2 and DC12V
  • UL listed
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant
  • 5 year warranty


Files:

DWC-MF2Wi4TWDMP datasheet
DWC-MF2Wi4T AE specifications
DWC-MF_DMP series quick setup guide
DW IP Finder v4.4.14 for Linux OS
DW IP Finder v4.4.14 for Windows OS
Camera part numbering system
DW Accessories Chart
DWC-MF2Wi4TWDMP UL certificate


Specifications:

3D digital noise reduction3D DNR
Auto gain controlAuto
ComplianceUL Listing, CF, FCC, RoHS, ONVIF
Day and nightAuto day/nighy, Night (B/W)
FeaturesStar-Light Plus
Focal Length4.0mm
Horizontal Field of View (HFOV)86 Degree
HousingVandal Dome
IK ratingIK10 Rated
Image sensor2.1MP/1080p 1/2.8" CMOS sensor
IP ratingWeather Resistant (IP66)
IR Distance50" range Smart IR
Lens TypeFixed Lens
MaterialsMetal, Polycarbonate Dome
Minimum Scene Illumination in color0.09 lux (color), 0.0 lux (B/W)
Mirror/flipYes
Motion DetectionYes
Operational FeaturesTrue D/N
Power Requirements12 V DC, PoE, (Adapter not included)
Product TypeCameras
Resolution2.1MP/1080p
Video Compression TypeH.265, H.264
Video Management SoftwareDMP
Warranty5 Year Warranty

Extra Information

Brand:
DW
