2-WIRE,12/24 V, CO/SMOKE COMBO

No reviews yet Write a Review
SKU:
HW-BK-COSMO2W
Product Overview Integration: The i4 module allows up to 12 i4 Series or compatible i 3 Series smoke detector models to be integrated into a fire alarm panel using only 2 to 3 zones: a smoke zone, a CO zone and an optional trouble zone. Detectors sound Temp 3 for smoke and Temp 4 for CO events. The i4 module can be used to alarm all sounders in compatible detectors for smoke and CO events. When one detector detects smoke or CO and goes into alarm, all connected detectors alarm, offering the highest level of warning to the homeowner.Installation ease: The i4 Series Interface Module mounts to a 411/16-inch square back box for quick and easy installation. Terminal blocks with durable SEMS screws

Description

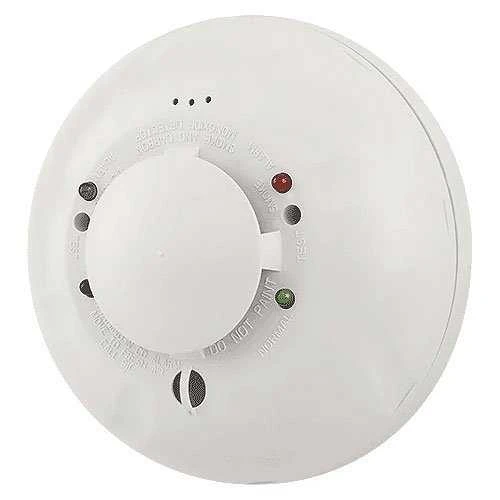

System Sensor COSMO-2W 2-Wire CO/Smoke Detector


  • UPC: 783863044373
  • Also known as: BK-COSMO2W


The System Sensor COSMO-2W is a best-in-class i4 Series combination CO/Smoke detector is a 2-Wire carbon monoxide (CO) and smoke detection technology in a single, system-connected device.

UPC: 783863044373, Also Known As: COSMO2W

There are many reasons to choose the i4 Series combo CO / Smoke Detector. There is no need to ever purchase two seperate devices (CO detector + smoke detector) again. Once device means less wiring and less work for you! You will save countless hours wiiring, and save money on wires and junction boxes.

If you need Architectural of Engineering Specifications, please view our resources and find "Engineering Spec."

If you need a replacement CO cell - see part number CO-REPL. It includes a 10 year CO cell life, an end of life timer with apnel notification and chirp. It is also field replaceable without tools.		 Features:
  • 2-wire, 12/24V model
  • Single device for CO and smoke detection that uses less wiring and fewer junction boxes
  • Compatible with a wide range of control panels with the use of the required i4 Interface Module.
  • Sends distinct smoke and CO signals to the panel
  • Sounds Temporal 3 for smoke and Temporal 4 for CO
  • Built-in 85dB sounder
  • LEDs display both CO and smoke status
  • External IR LED provides extended range sensitivity testing
  • Versatile mounting allows for wall or ceiling placement
  • Easily replaceable electrochemical CO cell with 10-year end-of-life timer that signals the panel and chirps to alert the homeowner
  • RealTest enables functional test using canned CO
  • Drift compensation and smoothing algorithms provide false alarm immunity
  • Compatible with SENS-RDR sensitivity tester
  • Full agency compliance with UL 268 and UL 2075


Technical Specifications:
  • System Voltage: 12/24 VDC
  • Minimum/Maximum Voltage: 8.5V/35V
  • Maxmum Current: Startup - 200 uA, Standby - 50 uA
  • Maximum Alarm Current: 50 uA
  • Operating Temperature Range: 0 - 50 C (32 - 122 F)
  • Operating Humidity Range: 20-95% RH
  • Dimensions: 5.5" D x 2.5" H
  • Weight: 9.2 oz (261 g)
  • Wire Gauge Acceptance: Min: 22 AWG Max: 14 AWG

Extra Information

Brand:
Honeywell
