5800PIR-OD2

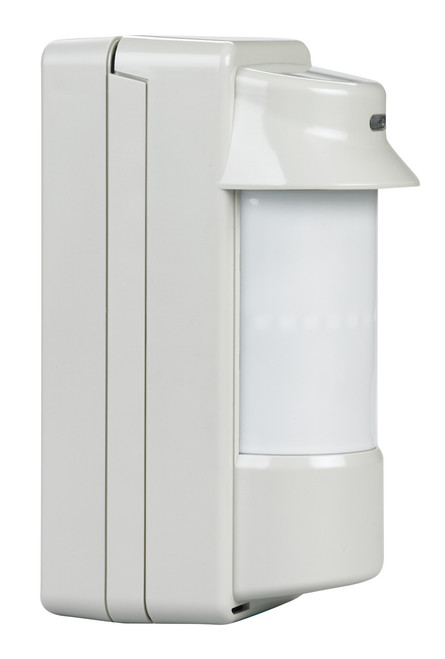

5800PIR-OD Motion Detector

• Faster and Easier to Install
  Specific features that contribute to this benefit include:
  – Automatic walk test
  – Flashlight walk test
  – No DIP switches/jumpers
  – Remotely programmable sensitivity
  – No mounting height adjustments
  – Circuit board does not need to be removed to install on wall
  – Ceiling and wall mounting brackets help to easily direct the pattern where needed
  – 7'-9' mounting height means fewer restrictions than current offerings (6.5'-7.5')
  – Easy opening case
  – Covered circuit board reduces risk of installer initiated damage
• Fewer Service Calls
  Incorrect installation of equipment or changing requirements of the site (new pets) is no longer a problem
  – Automatic walk test mode turns on the walk test LED for ten minutes when cover is opened and closed or when a battery is installed. Walk test mode can also be triggered with a flashlight on the 5800PIR and 5800PIR-COM.
  – Remotely programmable
  – Longer battery life
  – End-user replaceable batteries
  – Black bug guard means 15% fewer false alarms due to bright lights directed into the PIR
  – UV protected lenses (on all models except 5800PIR-RES)
• Smaller/Better with a Family Look
  The new PIRs are 50% smaller than the 5890PI. Also, dealers can install one family look whether they use hardwired, V-Plex or wireless in order to complete the job. In addition, if the dealers need to mix and match sensing technologies, the look of the installation is consistent.
• Less Costly Maintenance
  Only one battery to replace.
• Decreased Liability
  Self test—alerts end-user and central station if the motion detector stops functioning (except 5800PIR-RES)
• Optional Cold Temperature Alert
  (< 45° F) warns when temperatures are approaching the freezing point (except 5800PIR-RES).
• Commercial Dealer —Additional Benefits
  – New longer range patterns allow more wireless options
  – Colder operation down to -20° C (-4° F) for use in unheated areas
  – Look down option provides increased security right below the detector
  – Back tamper switch—required for commercial certificated installations
