A composite cable carrying every conductor an opening needs in one jacket. One pull instead of four, which on a door twenty feet up a corridor ceiling is most of the labour saved.

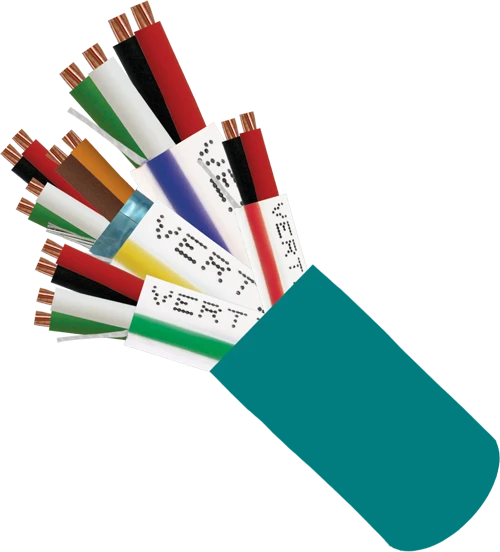

22AWG 3-Conductor Pair Stranded Shielded, 18/4STR + 22AWG 4-Conductor Stranded + 22AWG 2-Conductor Stranded, Riser, For Access Control Green 500 ft Spool
Supplied as Vertical Cable part 214-2325/GR. Specifications follow the manufacturer's published data for this part.
Features
- 4 Component Access Control Cable
- Contains: 22 AWG /3-Pair Shielded, 18 AWG 4 Conductor, 22 AWG 4 Conductor, 22 AWG 2 Conductor
- Each component contains a rip cord
- Overall RISER RATED Jacket
- Applications Include: Access Control Panels, Security Panels, Card Readers, Sensors, Keypads, Power, Microphones, Speakers, Alarm Systems
- ETL Listed, RoHs Compliant
- 500 FT Spool
About Vertical Cable
Vertical Cable is a US manufacturer and distributor of low voltage and fiber cabling. Parts are supplied to published specification with manufacturer spec sheets available, which matters when an installation has to be certified or handed over with documentation.
Brand:
Vertical Cable
Manufacturer part number:
214-2325/GR
Product type:
Composite access control cable
Conductor gauge:
22 AWG
Conductors:
3
Conductor type:
Stranded
Shielding:
Shielded
Fire rating:
Riser rated (CMR)
Length:
500 ft
Packaging:
Spool
Colour:
Green
Listing:
ETL listed
Compliance:
RoHS compliant
What is the manufacturer part number?
Vertical Cable part 214-2325/GR. Quote this when cross-referencing against a specification or a bill of materials.
What is the fire rating of this cable?
Riser rated (CMR). Confirm the rating required for the specific pathway before installing, since plenum spaces and riser shafts have different requirements.
Is this cable shielded?
Shielded. Shielded cable needs the shield bonded correctly at termination to be effective, and is specified where electromagnetic interference is a concern.
