6V PSU Power Supply Unit for Hub 2 & Range Extender Battery Operation
SKU AJ-42790
- Fast shipping from four branches
- 30-day returns on unopened products

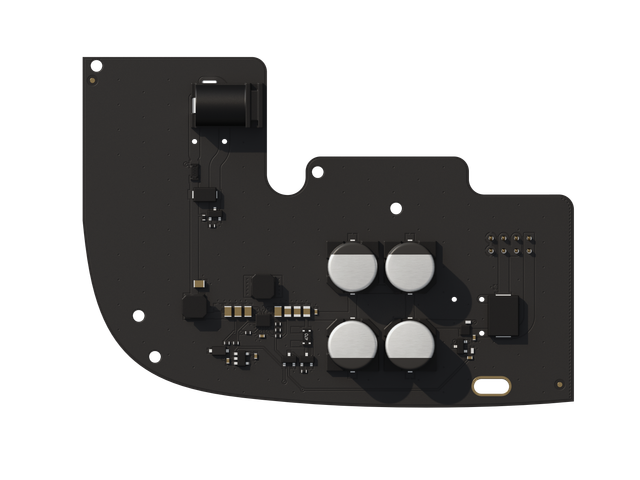

A power supply board that lets an Ajax hub or range extender run from a portable zinc-air alkaline battery instead of the mains. It installs inside the hub or extender enclosure.
Built for the installer
The application is a site with no usable mains at the position the hub needs to be, or a deployment where extended autonomy matters more than convenience: a temporary installation, a construction site, a remote building, or a system that has to survive a long outage well beyond the hub's own backup battery.
It accepts 4.2 to 10 V input from the battery and delivers a regulated 4.8 V at up to 1.5 A, switching on at 4.2 V and cutting off between 3 and 3.4 V depending on load. A terminal adapter is included.
Key features
- Runs a hub or range extender from a portable battery where there is no usable mains
- Extends autonomy well beyond the hub's own backup for temporary or remote deployments
- Installs inside the existing enclosure, no external box
- Regulated 4.8 V output at up to 1.5 A
- Automatic cut-off between 3 and 3.4 V to protect the battery
System requirements
Installs into an Ajax hub or range extender enclosure. Requires a zinc-air alkaline battery with a 4.2-10 V operating voltage, supplied separately.
Specifications
| SKU | AJ-42790 |
|---|---|
| Brand | AJAX |
| Compatibility | Installs into an Ajax hub or range extender enclosure |
| Battery type | Zinc-air alkaline with 4.2-10 V operating voltage |
| Input voltage | 4.2-10 V DC |
| Input current | 2.2 A at 4.2 V, 0.8 A at 10 V |
| Switch-on voltage | 4.2 V +/- 0.5% |
| Switch-off voltage | 3-3.4 V depending on load |
| Output | 4.8 V +/- 3%, up to 1.5 A |
| Dimensions | 3.9 x 2.8 x 0.67 in |
| Device weight | 0.917 oz |
| Operating temp | 14F to 104F |
| Pack contents | 6V PSU board and terminal adapter |
| Region | 9NA, North America model |
| Warranty | 24 months |
