AJAX | StreetSiren DoubleDeck Jeweller Outdoor Siren with Branded Faceplate Mount, White | 42847

No reviews yet Write a Review
SKU:
AJ-42847

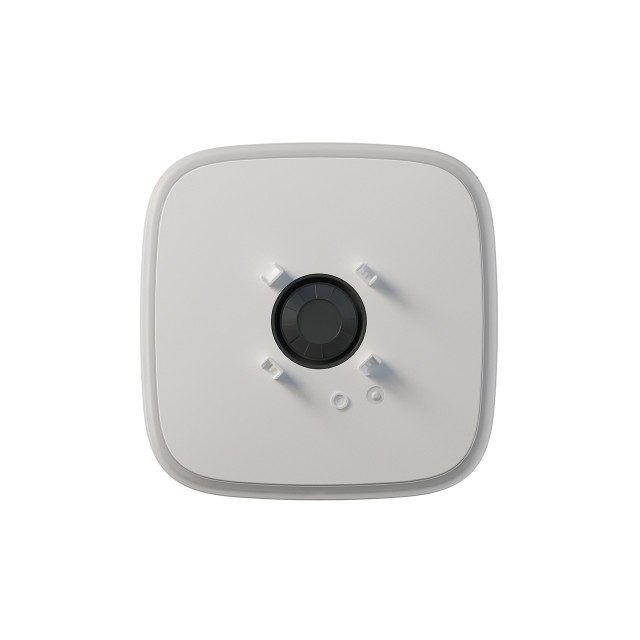

The same 113 dB outdoor siren as StreetSiren, with a clip-locked faceplate that takes a custom printed Brandplate. Every siren on every job becomes a piece of signage carrying your company name, logo and phone number.

Built for the installer

That is the reason to specify this version. A siren box is mounted high on the front of a building where everyone sees it, and it stays there for years. Putting your branding on it turns an installed base into continuous local advertising, and it gives a neighbour who wants the same system your phone number to copy.

Brandplates are ordered separately in batches of 10, designed through Ajax's Brandplate constructor. Everything else matches StreetSiren: 85 to 113 dB, adjustable duration, separate tamper and shake reporting, type X, up to 5 years self-powered.

Key features

  • Custom branded faceplate turns every installed siren into local signage
  • Clip lock so the faceplate changes without removing the siren from the wall
  • Up to 113 dB at 3.3 ft with LED indication
  • Reports tampering and shaking separately
  • Self-powered for up to 5 years, no cable run required

System requirements

Requires an Ajax hub or range extender. Brandplate faceplates are ordered separately in batches of 10 and designed in the Ajax Brandplate constructor.

Brand:
AJAX
Radio communication range:
Up to 4,500 ft in open space, between the device and a hub or range extender
Indication:
Acoustic and LED
Warning device type:
Type X, external and self-powered, compliant with EN 50131-6
Alarm volume:
85 to 113 dB at 3.3 ft, adjustable
Alarm duration:
From 3 s to 3 min, adjustable
Siren sound frequency:
1.60 to 4.5 kHz
Branding:
Clip lock for a customised Brandplate faceplate, ordered separately
Sabotage protection:
Separate alerts for enclosure opening and for movement, shaking or detachment
Use environment:
Indoor and outdoor
Power input:
4 x CR123A, pre-installed
Battery life:
Up to 5 years
Colour:
White
Region:
9NA, North America model
Radio protocol:
Jeweller, two-way encrypted wireless
Frequency band (North America):
905.0-926.5 MHz, certified to UL/ULC standards
Radio modulation:
GFSK with frequency hopping
Encryption:
Block encryption with a dynamic key
Communication loss detection:
After 36 seconds
Anti-spoofing:
Device authentication
Warranty:
24 months
How is the branded faceplate ordered?
Brandplates are a separate part, supplied in batches of 10. The design is composed in Ajax's Brandplate constructor and may include a logo, company name, website and phone number.
Can the faceplate be changed later?
Yes. It is held by a clip lock and a screw, so a faceplate can be swapped without taking the siren off the wall.
Is it the same siren as the standard StreetSiren?
Acoustically and functionally yes: 85 to 113 dB, adjustable duration, separate tamper and shake reporting, type X, self-powered for up to 5 years. The DoubleDeck adds the branded faceplate mount.
Does this device need an Ajax hub?
Yes. All Jeweller devices report to an Ajax hub or a range extender. The device cannot operate standalone and does not connect to a third-party panel directly.
What does the 9NA region code mean?
It is the North America model, operating on the 905.0-926.5 MHz Jeweller band certified to UL/ULC standards. European models on 868 MHz are not interchangeable with it.
How quickly is a lost device detected?
Within 36 seconds. Jeweller polls each device continuously, so a jammed, removed or failed device is reported rather than quietly going offline.
