Description

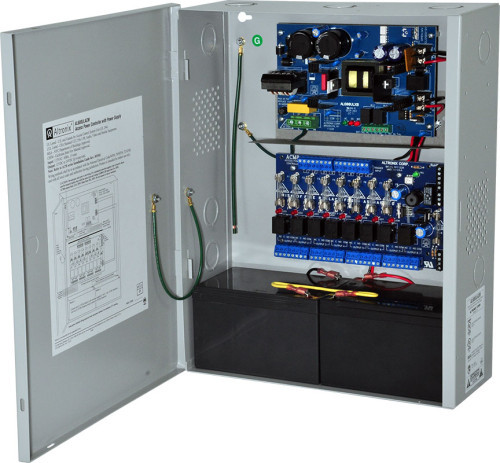

Altronix AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6A continuous supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs
The Altronix AL600ULACM stands as an essential component for access control systems, providing reliable power solutions for various locking mechanisms. With a total output of 6A, this unit efficiently converts 115VAC 60Hz input into eight independently controlled 12VDC or 24VDC outputs, tailored for both fail-safe and fail-secure operations.
Designed for versatility and optimal performance, the AL600ULACM allows for seamless integration with numerous access control devices such as magnetic locks, electric strikes, and door holders. Its innovative design ensures that both board operations and locking devices can be powered from a single source or two independent power sources, enhancing system reliability.
- Converts 115VAC to eight (8) 12VDC or 24VDC outputs.
- Provides a total of 6A continuous supply current for reliable operation.
- Supports Fail-Safe and Fail-Secure modes for flexible security applications.
- Utilizes dry form "C" contacts for enhanced compatibility.
- Integration with access control devices via NO dry trigger inputs.
- FACP Interface for easy integration with fire alarm systems.
- Individual output fire alarm disconnect for tailored control.
- Factory-installed common power source for simplified setup.
The Altronix AL600ULACM is the definitive power supply choice for professionals, ensuring your security systems operate smoothly and efficiently under any circumstances.
