Altronix | NetWay4e1WPX | 4PT POE+ SW 1G SFP NEMA4 LG

• Input

  • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
  • Fusing: 5A/250V.

• Power Output

  • Maximum Power:

    • Four (4) 10/100/1000 Mbps.
    • PoE/PoE+ (up to 30W) ports.
    • IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
    • 120W total power.
    • Integral surge protection.

• Fiber Port

  • One (1) Gigabit SFP (Fiber) port.

• Back-up Battery (not included)

  • Capacity: 4AH / 12VDC (4 within enclosure).
  • Type: Sealed lead acid or gel type.
  • Failover: Upon AC loss, instantaneous.

• Indicators (LED)

  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.

• Temperature

  • Operating:

    • 60W: - 40° C to 75° C ( - 40° F to 167° F).
    • 75W: - 40° C to 70° C ( - 40° F to 158° F).
    • 100W: - 40° C to 55° C ( - 40° F to 131° F).
    • 120W: - 40° C to 45° C ( - 40° F to 113° F).
  • Storage: - 40° C to 85° C ( - 40° F to 185° F).
  • Relative Humidity: 85% +/- 5%.
  • BTU/Hr. (approx.): 61 BTU/Hr.

• Operating Altitude

  • - 304.8 to 2,000m.

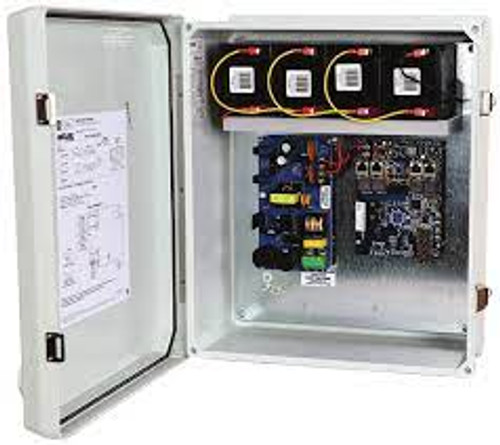

Optimize your network infrastructure with the Altronix NetWay4e1WPX, a robust solution designed for demanding installations. This 4PT POE+ SW 1G SFP NEMA4 LG unit combines superior power delivery with the reliability needed for outdoor applications.

Engineered to deliver unparalleled performance, the NetWay4e1WPX supports both IEEE 802.3af and 802.3at standards, ensuring compatibility with a wide range of devices. With a total power output of 120W and four 10/100/1000 Mbps PoE+ ports, your equipment will operate seamlessly even in extreme conditions.

• Input voltage options: 115VAC or 230VAC for versatile installations.
• Maximum output: Four PoE/PoE+ ports with up to 30W each, supporting critical applications.
• Equipped with one Gigabit SFP fiber port for high-speed data connections.
• Real-time status indicators for PoE and IP link ensure operational transparency.
• Designed for harsh environments with a NEMA 4 rating and operating temperatures from -40°C to 75°C.
• Optional backup battery support for reliable operation during AC loss.
• Integral surge protection to safeguard your devices against electrical spikes.

Upgrade your network installations with the Altronix NetWay4e1WPX, the ideal choice for professionals seeking durability, reliability, and advanced performance in a compact design.
