Description

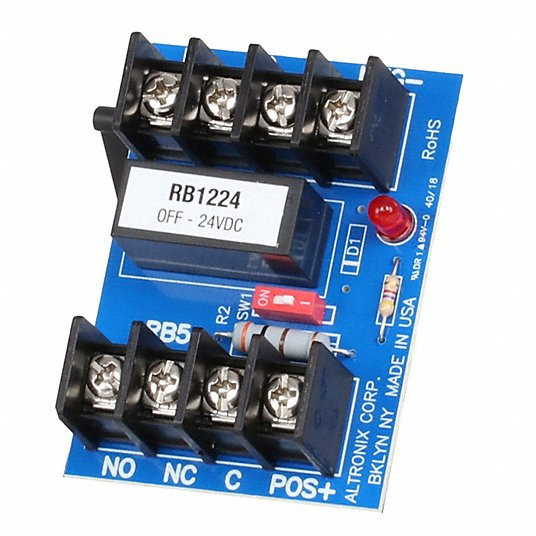

RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. The RB1224 is snap track mountable.
-
Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 75mA.
-
Contact Rating
- DPDT contacts rated at 5A/220VAC or 28VDC.
-
LED Indicators
- Relay status LED.
- Remote LED status output.
-
Temperature
- Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
- Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
- Relative Humidity 85% +/-5%.
The Altronix RB1224 Relay Module is a versatile solution designed for professionals in the field. Perfect for diverse applications such as Dry Contact setups, Line Seizure, and Polarity Reversal, this module ensures reliable performance across various installations. Engineered for efficiency, it features quick snap track mounting, making it an essential tool for any installer.
With dual input voltage options of 12VDC and 24VDC, the RB1224 accommodates a wide range of power needs. Its robust DPDT contacts, rated at 5A for 220VAC or 28VDC, provide ample current handling capabilities for demanding applications. The module's user-friendly LED indicators allow for intuitive real-time monitoring of relay status and includes a remote LED status output for enhanced visibility.
- Input Voltage: Operates at 12VDC or 24VDC with a current draw of only 75mA.
- Contact Rating: Features DPDT contacts rated at 5A for both 220VAC and 28VDC.
- LED Indicators: Equipped with a relay status LED and a remote LED status output for easy monitoring.
- Wide Operating Temperature: Maintains functionality in extreme conditions with an operational range of -25ºC to 55ºC (-13ºF to 131ºF).
- Humidity Tolerance: Rated for 85% relative humidity +/-5%, ensuring durability in various environments.
The Altronix RB1224 Relay Module is engineered for optimal performance, making it a trustworthy choice for installers seeking reliability and versatility in their projects.
