Description

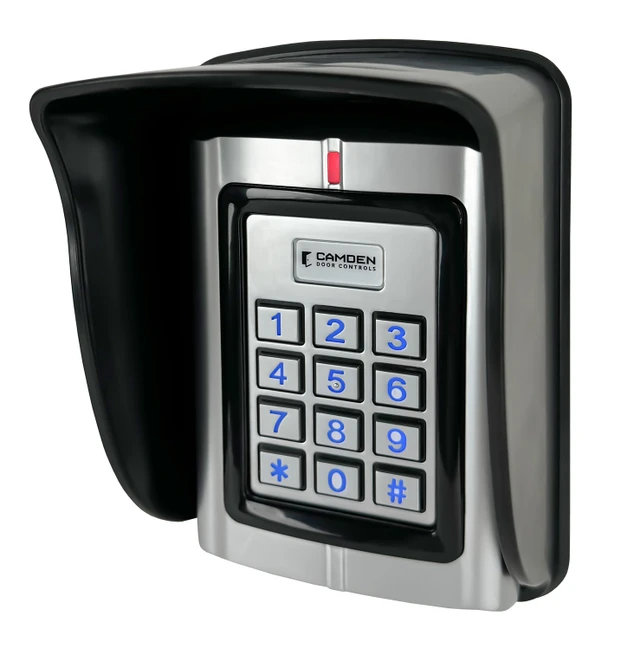

The Camden CV-550SPK stand-alone, HID format prox reader and keypad, supports up to 2000 users with card, PIN, or card and PIN access. It features a cast metal housing and backlit keypad with fully potted electronics, making CV-550SPK both weather (IP 68 rated) and vandal resistant. In addition, the CV-550SPK has inputs for REX switch/sensor, door contacts, as well as a Form 'C' relay, tamper, and Wiegand 26 bit input and output. User cards or tags can easily be individually or batch enrolled.
Features:
-
Up to 2,000 users - Card, PIN, Card + PIN
-
Batch card/tag enrollment
-
Cast metal, heavy duty construction
-
Backlit vandal resistant keypad
-
Weather resistant IP68 rated
-
Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
-
4 to 6 digit PIN code length
-
(1) Form 'C' relay output
-
Tamper alarm output
-
Request to exit device input
-
Door contact input
-
Adjustable door alarm time and door open time
-
Wiegand 26 bit output for integration with access control systems
-
Wiegand 26 bit input/outpuit
-
3 year warranty
Technical Specifications:
- Voltage: 12 VDC +/- 10%.
- User Codes: 2,000
- IP Rating: 68
- Idle Current: 25mA
- Contact Type: (1) Form 'C'
- Contact Rating: 1 amp@30V DC
- Alarm Output Load: 1 amp@30VDC
- Ring Bell Load: 1 amp@30VDC
- Card Read Distance: 1.75" (40mm) Max
- Card Frequency: 125KHZ, EM and HID
- Card Format: 26, 34 or 37 Bit Wiegand
- Keypad Format: 4 Bit, 8 Bit and Virtual Card Number
- Temp Range: -49F to 113F (-45C to 55C)
- Dimensions: 4 13/16" H x 3 1/8" W x 1 1/16" D (121.67mm x 79.50mm x 26.42 mm)
