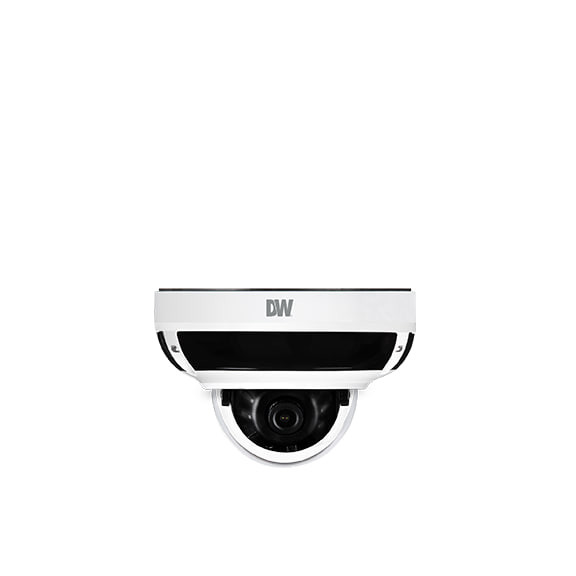

MEGApix Ai Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5MP , Star-Light Plus, 2592x1944 @ 30fps, Ai Deep Learning, 2.
SKU DW-DWC-XSDA05Bi
- Fast shipping from four branches
- 30-day returns on unopened products
MEGApix Ai Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5MP , Star-Light Plus, 2592x1944 @ 30fps, Ai Deep Learning, 2.8mm Autofocus Fixed Lens, 90ft Smart IR, Sperate IR Led's, T-WDR, 3D-DNR, True D&N, Alarm In/RelayOut,Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Two Way Audio, PoE Class 3 and DC12V, OnVIF Compliant, Micro SD/SDHC/SDXC class 10 card slot (card not included) IP67, IK10, NDAA, UL, 5 Year Warranty.
Specifications
| SKU | DW-DWC-XSDA05Bi |
|---|---|
| Brand | DW |
| Power Source | PoE (IEEE 802.3af) or DC 12V (adapter not included) |
| Power Consumption | PoE 12.5W / 12V DC 10.4W |
| Compatibility | ONVIF conformant, DW Spectrum IPVMS |
| Certifications | NDAA, TAA, CE, FCC, UL |
| Warranty | 5 years |
| Image Sensor | 1/2.8" 5.17MP Star-Light Plus CMOS |
| Maximum Resolution | 2592 x 1944 (5MP) |
| Frame Rate | Up to 30fps at all resolutions |
| Lens | 2.8mm fixed, F2.2 |
| Field of View | 97.7° horizontal / 73° vertical |
| IR Range | 90 ft (Smart IR) |
| Minimum Illumination | 0.08 lux color / 0 lux B/W (IR on) |
| Wide Dynamic Range | True WDR, 120 dB |
| Compression | H.265, H.264, MJPEG |
| Streaming | Triple streaming (3rd stream MJPEG only) |
| AI Features | Object and people detection, classification, and tracking, up to 40 zones |
| Analytics | Tamper, intrusion, line crossing, counting, appear/disappear, dwell, tailgating |
| Audio | 1 built-in microphone, 1 line output, G.711 |
| Alarm I/O | 1 input / 1 output |
| Local Storage | microSD / SDHC / SDXC class 10 (not included) |
| Network | RJ45 10/100 Base-T |
| Protocols | TCP/IP, RTSP, HTTP/HTTPS, ONVIF, SNMP v1/v2/v3, 802.1x |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Housing Material | Aluminum die-cast vandal housing, polycarbonate dome |
| Dimensions | 4.13" x 2.83" (105 x 72 mm) |
| Weight | 0.97 lbs (0.44 kg) |
