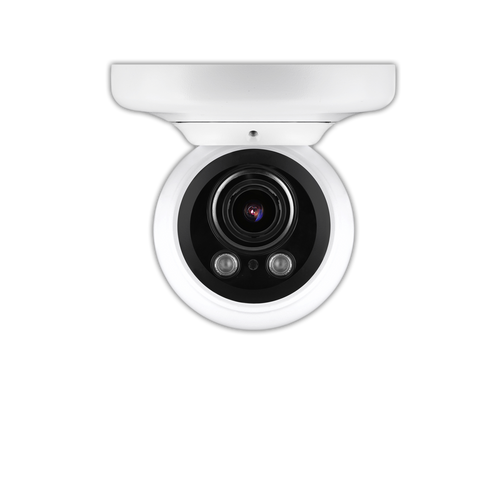

Digital Watchdog | DWC-MVA2WiAT | 2.1MP vandal ball turret IP camera w/ varifocal lens IR

No reviews yet Write a Review
SKU:
DW-DWC-MVA2WiAT

Description

This MEGApix IVA+ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus+ color in near-total darkness technology for quality video in any lighting condition. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections and offer easy angle adjustment for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Product Feautres :

  • 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus+ color in near-total darkness technology
  • Intelligent Video Analytics (IVA pre-loaded models)
  • Extended Intelligent Video Analytics (IVA+ pre-loaded models)
  • Seamless integration and control of IVA rules with DW Spectrum IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 100' Smart IR+ with intelligent camera sync
  • Vandal ball housing reduces IR reflection
  • Smart DNR+ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 3 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty


Files:

DWC-MPVA2WiAT datasheet
DWC-MVA2WiAT datasheet
MEGApix IVA brochure
DWC-MPVA2WiAT CAD drawing
DWC-MVA2WiAT AE specifications
DWC-MVA2WiAT CAD drawing
DWC-M(P)VA series quick setup guide
DWC-M(P)VA2WiAT series user manual
MEGApix IVA user manual - rules and analytics
IVA and IVA+ plugin v.1.0.34b
MEGApix Star-Light Plus+ 2.1MP/1080p firmware vA7.2.2_20211029
DW IP Finder v4.4.14 for Linux OS
DW IP Finder v4.4.14 for Windows OS
Camera part numbering system
DW Accessories Chart
DWC-MPVA2WiAT UL certificate
DWC-MVA2WiAT UL certificate


Specifications:

3D digital noise reduction3D DNR
Advanced Lens FeaturesMotorized zoom, Auto focus, P-iris
Auto gain controlAuto
Backlight compensation (BLC)Yes
Bitrate ControlMulti-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth), Smart bitrate control – CVBR
ComplianceCF, FCC, RoHS, ONVIF, NDAA, TAA, UL Listing
Day and nightAuto day/nighy, Night (B/W)
De-fogYes
Dimension4.92" x 4.8" (125 x 122 mm)
FeaturesStar-Light Plus
Horizontal Field of View (HFOV)93.6° ~ 34.1°
HousingVandal ball
IK ratingIK10 Rated
Image sensor2.1MP/1080p 1/2.8" CMOS sensor
Intelligent Video AnalyticsIVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
IPIPv4, IPv6
IP ratingWeather Resistant (IP67)
IR Distance100" range Smart IR+
LANRJ45 (10/100Base-T)
Lens TypeVari-focal Lens
MaterialsMetal
Memory slotMicro SD/SDHC/SDXC class 10 card (card not included)
Minimum Scene Illumination in color0.043 lux (color), 0.0 lux (B/W)
Mirror/flipYes
Motion DetectionYes
Notificationsx3, x5, x4, x6, x7.5, x10, Off, x2
NotificationsEmail, FTP server, SD card recording
Operating Humidity10-90% (non-condensing)
Operating Temperature-4°F ~ 122°F (-20°C ~ 50°C)
Operational FeaturesTrue D/N
Power ConsumptionDC12V: max 6.4W, 533.3mA, PoE: max 7.6W
Power Requirements12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included)
Privacy Zones16 programmable privacy masks
Product TypeCameras
ProtocolsHTTP, DDNS, HTTPs, DHCP, ICMP, DNS, NTP, ONVIF, FTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Resolution2.1MP/1080p
ResolutionH.265: 2.1MP/1080p, 720p, VGA, D1, CIF, H.264: 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF
Security802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering
Shutter SpeedAuto, Manual, Slow Shutter, Anti-Flicker
Slow Shutter Speed1/15 ~ 1/32000
Stream SpeedUp to 30fps at all resolutions
Total Pixels1928 (H) x 1088 (V) 1945 (H) X 1109 (V)
Veritcal Field of View (VFOV19.2° ~ 51.8°
Video Bitrate100Kbps~10Mbps, multi-rate for preview and recording
Video Compression TypeH.264, H.265, MJPEG
Video Management SoftwareDMP, DW Spectrum IPVMS, Any ONVIF conformant CMS
Warranty5 Year Warranty
Web ViewerWindows OS, Mac OS, Linux OS, Internet Explorer browser, Google Chrome browser, Mozilla Firefox browser, Safari browser
Weight1.87 lbs (0.85kg)
Wide Dynamic Range (WDR)True WDR 120dB

Extra Information

Brand:
DW
