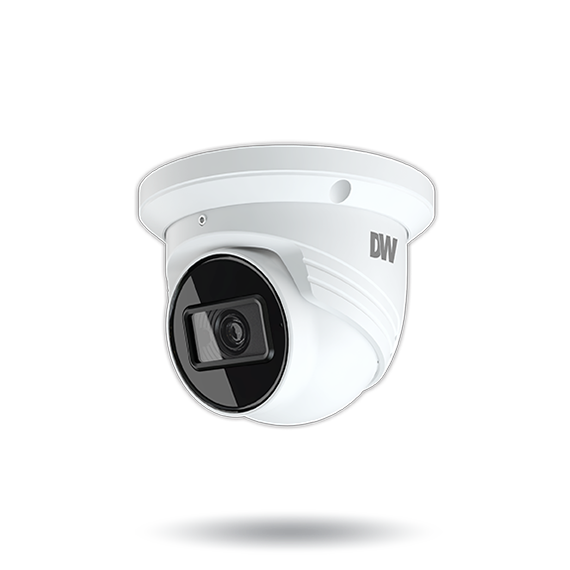

DWC-MT95Wi36TW 5MP turret IP camera with 3.6mm fixed lens and IR

No reviews yet Write a Review
SKU:
DW-DWC-MT95Wi36TW

Description

These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 30fps. The IP67-rated turret camera features 2.8mm and 3.6mm fixed lens options and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Product Feautres :

  • 5MP 1/2.7? image sensor at real-time 30fps
  • 2.8mm fixed lens (DWC-MT95Wi28TW)
  • 3.6mm fixed lens (DWC-MT95Wi36TW)
  • True Wide Dynamic Range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • 100ft range Smart IR+
  • Object classification video analytics
  • Line crossing video analytics
  • Perimeter intrusion video analytics
  • Video tampering with scene change detection video analytics
  • Video tampering with video blur detection video analytics
  • Video tampering with abnormal color detection video analytics
  • Smart DNR+ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • De-Fog+ extreme weather image compensation
  • Auto white balance (AWB)
  • Motion detection
  • Audio input through built-in microphone
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Web server built-in
  • PoE class 3 and DC12V
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty


Files:

DWC-MT95WixTW datasheet
DWC-MT95WixTW datasheet - French
DWC-MT95WixTW datasheet - Spanish
MEGApix Single-Sensor Brochure
DWC-MT95WixTW AE specifications
DWC-MT95WixTW CAD drawing
DWC-MT95WixTW quick setup guide
DWC-MT95WixTW user manual
5MP DWC-Mx95xxx firmware v5.1.1.0
DW IP Finder v4.4.14 for Linux OS
DW IP Finder v4.4.14 for Windows OS
Camera part numbering system
DW Accessories Chart


Specifications:

3D digital noise reduction3D DNR
Advanced Lens FeaturesAuto focus, P-iris
Alarm in/out1 output
Audio compressionG.711A / U
Audio in/out1 input, 1 microphone built-in
Auto gain controlAuto
Bitrate ControlMulti-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Camera ControlRS485
ComplianceFCC, RoHS, ONVIF, NDAA, CF
Day and nightAuto day/nighy, Night (B/W)
De-fogYes
Dimension4.66" x 3.58" (118.6 x 91 mm)
Focal Length2.8mm, 3.6mm
Horizontal Field of View (HFOV)81.4°, 98.5°
HousingTurret
IK ratingIK10 Rated
Image sensor5MP 1/2.7" CMOS sensor
IPIPv4, IPv6
IP ratingWeather Resistant (IP67)
IR Distance100" range Smart IR+
LAN802.3 compliance 10/100 LAN
Lens TypeFixed Lens
MaterialsMetal
Memory slotMicro SD/SDHC/SDXC class 10 card (card not included)
Minimum Scene Illumination in color0.005 lux (color), 0.02 lux (color), 0.0 lux (B/W)
Mirror/flipYes
Motion DetectionYes
NotificationsEmail, FTP server
Operating Humidity0-95% RH (non–condensing)
Operating Temperature-22°F ~ 140°F (-30°C ~ 60°C)
Operational FeaturesTrue D/N
Power ConsumptionPoE: max 9.0W
Power Requirements12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included)
Privacy Zones4 programmable privacy masks
Product TypeCameras, Software, Product
ProtocolsRTCP, RTP, RTSP, SMTP, SNMP, UDP, 802.1x, UPnP, Bonjour, IGMP, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, PPPoE, QoS
Resolution5MP
Resolution5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps)
SecurityIP filtering, MAC filtering, Digest authemtication (ID/PW)
SharpnessYes
Shutter SpeedAuto, Manual
Slow Shutter Speed1/30 ~ 1/60000, 1/30 ~ 1/100000
Stream SpeedUp to 30fps at all resolutions
Streaming CapabilityDual-stream at different rates and resolutions
Total Pixels2592 (H) × 1944 (V)
Video Bitrate64Kbps~8Mbps
Video Compression TypeH.264, H.265, MJPEG
Video Management SoftwareDMP, DW Spectrum IPVMS, Any ONVIF conformant CMS
Warranty5 Year Warranty
Web ViewerWindows OS, Internet Explorer browser
Weight1.01 lbs (0.46 kg)
White BalanceYes
Wide Dynamic Range (WDR)True WDR 120dB

Extra Information

Brand:
DW
