Description
Features
Each unit is equipped with a fully supervised power circuit that monitors the battery and overall controller health and even charges the battery. Users receive important system notifications via text and email.
Self-Discoverable - Red Max is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it is not necessary to enter the IP address because the device is self-discovered.
Scalability - Whether you need four doors or a thousand, the Red Max controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.
Plug ‘n’ Play Connectivity - All io devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect up to a thousand doors on a single platform.
Multiple Reader Input Ports - Up to Twenty-Four input ports (depending on installed expander boards) are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The additional reader inputs can also be assigned to trigger automated events.
Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.
Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including: overcurrent events, primary power connectivity, battery connectivity, and battery charge status.
Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than the standard Wiegand protocol and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.
Specifications
Connections
- Removable screw-down terminals
- Polarized DC-only Power Supply Input
- Industrial-grade 2Amp Form-C Relays (Up to 24 Doors)
- Reader Input (8)
- Up to 24 Input A
- Up to 24 Input B
- Additional power and ground connections for devices other than door connectors
Communication Options
- Ethernet
- WiMAC wireless mesh (2.4 GHz / 802.15.4)
- Encryption: AES 128-bit
- Wireless Range: 1-mile line of sight / 450 ft. indoor average
Environmental
- Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
- Humidity: 0%–95% relative humidity noncondensing
Enclosure
- Dimensions (W x H x D) 14.25” x 18.25” x 4.0625”
- Metal lockable security can (indoor use only)
Weight
- 27 lbs. (12.25kg)
Compliance
- Conforms to UL 294

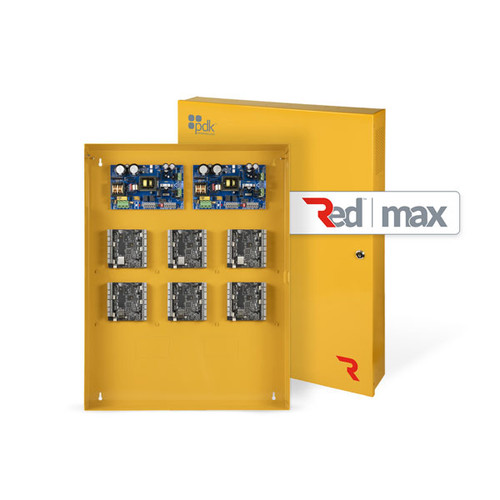

The Expandable Enclosure with R4 Controllers revolutionizes access control management, providing unparalleled flexibility and robustness.
Designed specifically for professional installers, this system seamlessly expands to manage up to 24 doors with ease, backed by two R4 controllers and dual 10 Amp power supplies to ensure optimal performance and reliability.
- Fully supervised power circuit for battery and controller health monitoring with automated notifications via text and email.
- Self-discoverable feature enables easy connectivity without needing to input IP addresses, speeding up installation time.
- Scalable architecture allows configuration for any project size, from four doors to a thousand, accommodating future expansion effortlessly.
- Plug ‘n’ Play connectivity makes installation straightforward, allowing users to integrate io devices simply without extensive configuration.
- Multiple reader input ports (up to 24) to enhance tracking of personnel movement and trigger automated security events.
- Smart battery charging system, providing real-time battery health statistics and ensuring reliable backup power.
- Intelligent monitoring that alerts for connectivity issues, overcurrent events, or battery failures, maintaining system integrity at all times.
- Support for OSDP protocol enhances security through two-way communication and AES-128 encryption.
- Industrial-grade components designed for environmental resilience, operating temperatures from -20ºC to +60ºC.
With its heavy-duty construction and advanced technology, the Expandable Enclosure ensures scalable, secure, and efficient access control solutions for today’s demanding environments.
