Aero X1100 Two Door Controller and Power Kit, Pre-Wired and Enclosed
Alarm.com

Aero X1100 Two Door Controller and Power Kit, Pre-Wired and Enclosed

SKU ADC-AC-X1100-2PSE Model ADC-AC-X1100-2PSE

New to SS&Si? Apply for a dealer account
Share
  • Free logo branding available
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

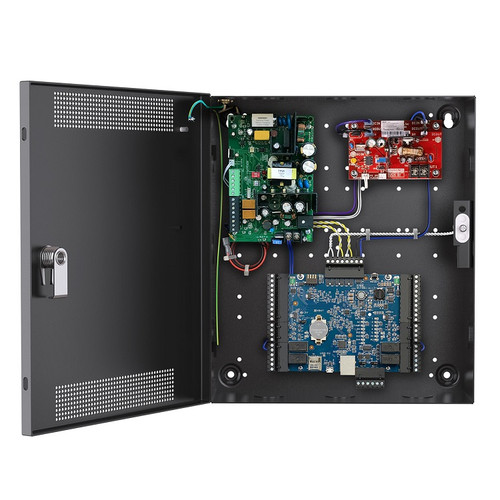

A one or two door access control system in a box. The X1100 controller arrives already wired to a dual-voltage 12/24 VDC supply inside a 14 by 12 inch enclosure, so the work on site is hanging the can, landing the readers and door hardware, and putting it on the network.

Built for the commercial installer

Buying the kit removes the part of the job that eats the most bench time and creates the most mistakes: pairing a controller to a supply, sizing the enclosure, and wiring the power chain correctly. It also removes the UL question. The kit carries UL294, UL603 and UL1076 along with ULC and CSA listings, which is the paperwork an AHJ asks for on a commercial opening.

The supply runs on 120, 208 or 230 VAC and delivers 1.5A at 12 VDC and 1.5A at 24 VDC, with selectable 0.7 or 1.60A battery charging behind it. Conduit knockouts are 1/2 inch and 1-1/4 inch. Note that this enclosure is full: an additional Aero expansion board will not fit inside it, so a third door means the four door kit or a separate enclosure.

Key features

  • Arrives pre-wired, so the controller, supply and enclosure are already matched and tested together
  • Dual-voltage 12 and 24 VDC output covers controller and door hardware from one supply
  • UL294, UL603 and UL1076 listed with ULC and CSA, which answers the AHJ question up front
  • Selectable battery charge current at 0.7 or 1.60A to match the battery set
  • Powers a complete 1 or 2 door system, no separate supply to spec or source

System requirements

Requires 120, 208 or 230 VAC at 50/60 Hz, an Ethernet connection, and an active Alarm.com for Business account with Smarter Access Control. Backup batteries are not included. An additional Aero expansion board cannot be mounted inside this enclosure.

Specifications

SKUADC-AC-X1100-2PSE
BrandAlarm.com
Form factorPre-wired controller and power supply kit in enclosure
Doors supportedComplete 1 or 2 door system
Kit contentsX1100 Door Controller pre-wired to a 12/24 VDC dual-voltage power supply
Power input120 / 208 / 230 VAC, 50/60 Hz
Main outputs1.5A at 12 VDC (B100), 1.5A at 24 VDC (FPV4)
Battery charge current0.7 or 1.60A selectable
Controller power input12 to 24 VDC +/-10%, 550 mA max excluding reader voltage
Reader power12 VDC +/-10%, 500 mA max per reader
InputsTwo dedicated reader inputs, four programmable inputs, dedicated tamper, AC fail and battery fail
OutputsFour relay outputs 5 A (NO) and 3 A (NC) at 30 VDC
Enclosure dimensions14 x 12 x 4.5 in (35.6 x 30.5 x 11.4 cm)
Device weight13 lbs (5.9 kg)
Conduit knockouts1/2 in (15 mm) and 1-1/4 in (32 mm)
System efficiency85% at 120 VAC 60 Hz, full load. 34 BTU/hr at 12V, 41 BTU/hr at 24V
Operating tempPower supply -4F to 122F (-20C to 50C). Controller 32F to 158F (0C to 70C)
CompliancePower kit: UL294, UL603, UL1076, ULC S318, S319, CSA C22.2 #107.1, CSA 22.2 #60950, RoHS, CE. Controller: FCC, CE, UL 294
CompatibilityAlarm.com for Business with Smarter Access Control

Documents and resources

FAQs

Can an expansion module be added inside this enclosure?
No. Alarm.com states that an additional HID Aero expansion board cannot be mounted within the ADC-AC-X1100-2PSE kit. For more than two doors, use the four door kit or mount the expansion in a separate enclosure.
Is this kit UL rated?
Yes. The power kit carries UL294, UL603, UL1076, ULC S318 and S319, CSA C22.2 #107.1 and CSA 22.2 #60950, plus CE and RoHS. The X1100 controller itself is FCC, CE and UL 294 certified.
Are backup batteries included?
No. Batteries are ordered separately. The supply charges at a selectable 0.7 or 1.60A, so match the charge rate to the battery set you install.
What does the kit save against buying the parts separately?
The controller and dual-voltage supply arrive pre-wired in a matched enclosure, so there is no pairing, sizing or power chain wiring to work out on the bench, and the UL listing covers the assembly as shipped.
