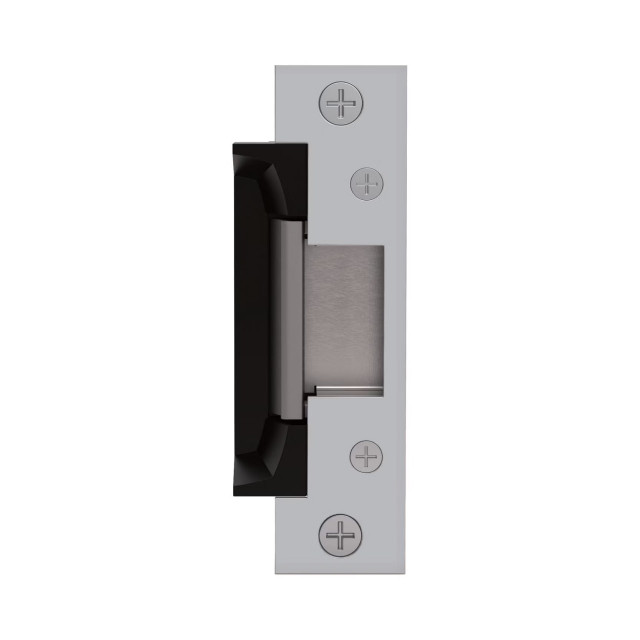

The HES 5200C Complete Pac is a Grade 1 electric strike built for cylindrical locksets where the access control system needs to know whether the door is actually latched. The Latch Bolt Monitor switch reports latchbolt position back to the panel, so a held-open door, a propped door, or a latch that didn't fully engage shows up as an event instead of a silent gap in the audit trail.
The 5200 series is built around an in-frame horizontal adjustable design. After the strike is mounted, the installer can dial in the horizontal opening to match the actual position of the latchbolt without pulling the frame apart again. That's the difference between a 20-minute callback and a clean walk-off on the first trip. Field-selectable fail secure / fail safe, field-selectable 12V DC or 24V DC, and a body that accepts latchbolts up to 3/4" throw covers most cylindrical openings without a SKU swap.
Complete Pac means the strike body, the faceplates, and the mounting hardware all ship in one box. No chasing trim packs, no field-substituting screws. Backed by HES's 5-year SecuriCare warranty, Grade 1 BHMA, burglary rated, outdoor rated, and PoE-friendly for 24V continuous-duty installs.
- Latch Bolt Monitor (LBM) reports latch position back to the access control panel
- In-frame horizontal adjustment after install ā no re-mortise to dial in the strike
- Field-selectable fail secure / fail safe and 12V DC / 24V DC dual voltage
- ANSI/BHMA Grade 1, burglary rated, outdoor rated
- Complete Pac includes strike body, faceplates, and mounting hardware
- PoE-friendly for 24V continuous-duty installs, 5-year SecuriCare warranty
