Description
Easiest Installation Ever
SmartMount system, all internal antennas, on-screen Installation Wizard
QuadSound Audio Streaming
Bluetooth Audio from your Smart Phone using four 4 watt speakers
Best Built-in Camera
8MP 120° wide angle camera w/ FlexTilt. Peek-in, Disarm Photos, Alarm Videos
Better All-In-One Range
LTE and WiFi Dual-Path, Dual SRF featuring PowerG, Z-Wave 700 Series, Bluetooth 4.2
Best Differentiating Features
Bluetooth Touchless Disarming, Live View, Live Answer, Built-in Glass Break
Best Integrations
Best in class Residential, Commercial, MDU, Builder, Wellness support
Specifications

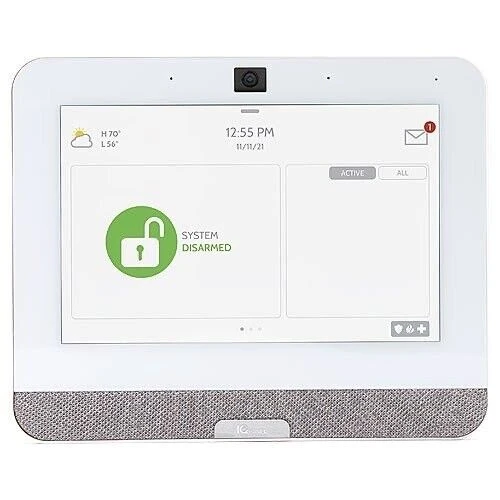

| Items | IQ Panel 4 | |
|---|---|---|
| LCD Display | 7 inch LCD | |
| 1280 x 800 pixels | ||
| 300 cd/m2 | ||
| 24bit, 16.9 Million Colors | ||
| Touchscreen | Capacitive glass multi-touch | |
| User Codes | Role-based (Dealer, Installer, Master, User, Guest, Duress) | |
| Network | WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability | |
| LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26) | ||
| Z-Wave Plus (700) | 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.) | |
| PowerG | 915 MHz Long Range Secure Encrypted 2-Way Wireless | |
| Security RF | Depending on the model: 345 MHz | |
| Bluetooth | Bluetooth Low Energy (BLE) 4.2 | |
| Flash Memory | 16GB NAND Flash | |
| LED Indicator | Triple full color RGB LED | |
| Speaker/Siren | QuadSound 4x front-facing 4W speakers and 85-decibel siren | |
| Camera | 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment | |
| Microphone | 3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation | |
| Tamper | Dual panel and wall tamper with spring release and Smash and Grab reporting | |
| Battery | Rechargeable Lithium Ion 3000mAh Rated for over 24 hours | |
| Buttons | Single wake/sleep button, all user controls through touch interface | |
| Mechanical | 6.1"H x 7.5"W x 1"D (155mm x 191mm x 26mm) | |
| Power Supply | 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL | |
| Mount | SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately | |
| Certifications | FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) | |
| IC: 11205A-QSIQPANEL4 | ||
| UL-985, UL-1023, UL2610, ULC-S545, ULC-S304 | ||
| Temperature | 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only | |
| -20°C to 50°C, -4°F to 122°F | ||
| Operating System | Security & Home Automation Touch and Swipe Interface | |
| Processor | Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash |
Extra Information
Brand:
Qolsys
