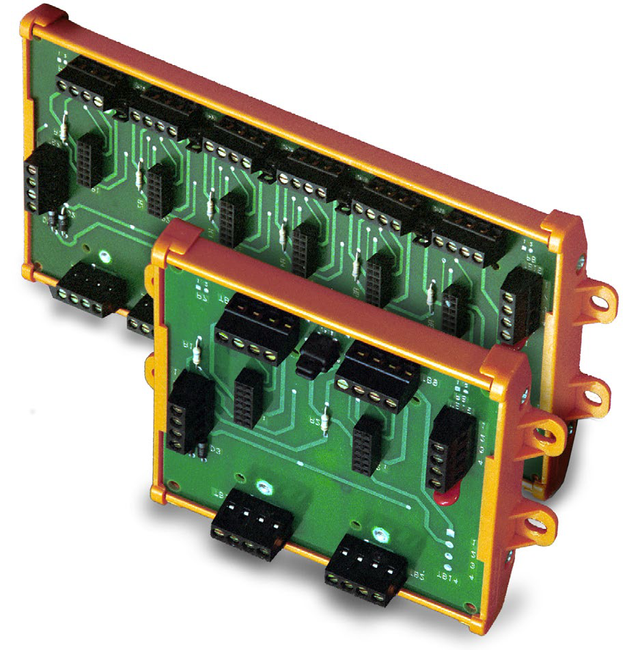

The GSA-UIO6R gives a Signature Series cabinet mounting and wiring terminations for up to six plug-in UIO modules, so a bank of GSA-M series modules can be installed and serviced from a single motherboard instead of six separate standard-mount boxes.

Built for the commercial fire installer

Modules plug in and lock down with captive screws, and all field wiring lands on the motherboard's terminal blocks, so a module can be pulled and swapped for troubleshooting without disturbing the field wiring. Riser #1 input can be jumpered between adjacent modules to share a single riser and cut wiring, while riser #2 stays dedicated to each module position. Slides into the included mounting track inside an MFC-A cabinet or other suitable enclosure.

Key features

  • Six module positions on one motherboard, replacing six individual standard-mount boxes
  • Two riser buses per module position, with jumperable riser #1 to reduce wiring
  • Captive-screw module retention for fast swaps during troubleshooting
  • No address required on the motherboard itself; addressing lives on the plugged-in modules
  • Supports automatic device mapping for as-built documentation

System requirements

Compatible only with GSA-M series plug-in modules and a Kidde Signature Data Controller. Mounts inside an MFC-A cabinet or other suitable enclosure; allow 1" clearance on all sides.

Specifications

SKUKD-GSA-UIO6R
BrandKidde Commercial
Form factorUniversal input-output motherboard, 6 module positions, with riser inputs
Dimensions9.56 in L (across mounting feet) x 4.3 in W x 3.2 in H (with modules installed)
Operating voltage15.2 to 19.95 Vdc (19 Vdc nominal)
Wiring terminals#12 to #18 AWG (2.5 mm² to 0.75 mm²)
Address requirementsNo address required on the motherboard; addressing lives on installed GSA-M modules
CompatibilityAll GSA-Mxxx Signature Series plug-in modules
MountingMFC-A cabinet or other suitable enclosure (2-WB, CAB2, 3-CAB series, RACC series)
Operating temp32°F to 120°F (0°C to 49°C)
Storage temp-4°F to 140°F (-20°C to 60°C)
Shipping weight0.62 lbs (0.28 kg)
ComplianceUL, ULC, MEA, CSFM
