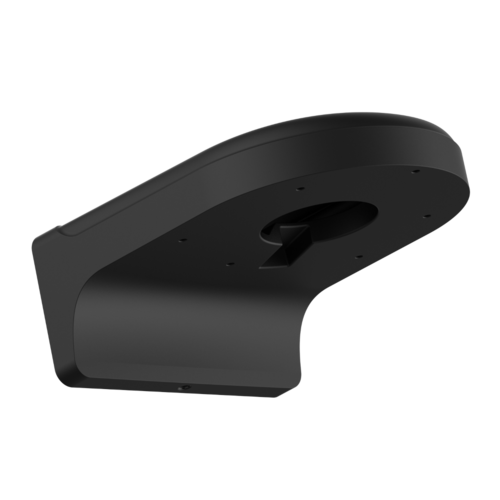

The Luminys LUM-W04B is the black finish of the LUM-W04 wall mount bracket, sized for Luminys standard-size N5T and N5P turret cameras (including the larger-body N5T-8LA2B). 2.0 kg (4.4 lb) load rating in a compact 188.2 x 146.3 x 76 mm aluminum profile.
Compatible Cameras
- LumiLuxSmart: N5T-4LA2(C), N5T-8LA2(B), N5T-12LA2, N5T-4LAV, N5T-8LAV, N3T-4LAV, N3T-8LAV
- LumiColor: N5T-8CA2
- LumiDeterrent: N5T-4DA2, N5T-8DA2, N5T-8DAV, N5P-8DA2, N5T-12DB2
Also available in white as LUM-W04. Successor to N5T/N5P-W01.
Brand:
Luminys
Form Factor:
Wall Mount Bracket (Standard Size Turret)
Material:
Aluminum
Color:
Black
Dimensions:
188.2 mm x 146.3 mm x 76.0 mm (7.4 in. x 5.8 in. x 3.0 in.)
Weight:
0.6 kg (1.3 lb)
Load Bearing Capacity:
2.0 kg (4.4 lb)
Spec Sheet
