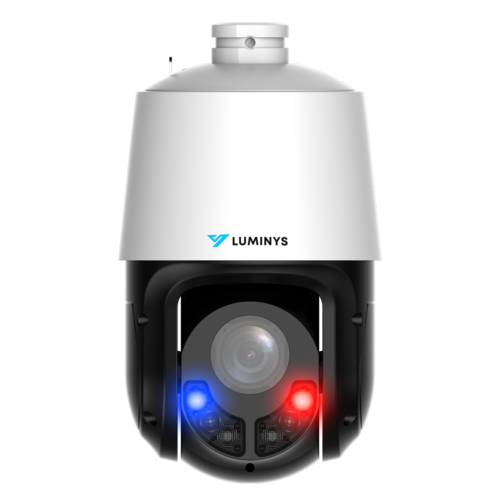

Luminys | P4 8MP 25x Lumideterrent Ptz Camera | P44-8DB25

No reviews yet Write a Review
SKU:
LM-P44-8DB25

The Luminys P44-8DB25 puts 8MP 4K PTZ coverage with built-in active deterrence on any site that demands more than passive surveillance. When LumiDeterrent triggers -- red/blue strobes and a built-in speaker -- it interrupts a threat in progress, not just documents it after the fact.

Built for the commercial installer

Part of Luminys's Mainstream Series, the P44-8DB25 pairs 4K image quality with intelligent PTZ automation. LumiTracking uses AI to auto-follow people and vehicles across the scene. LumiFocus keeps images sharp through the full 25x zoom range without operator correction. VCA+ analytics cover line crossing, intrusion, loitering detection, parking detection, and vehicle/human alarm classification out of the box. Dual illumination -- IR to 330 ft and white-light LEDs to 165 ft -- keeps coverage running around the clock. LumiPolarPro and LumiDesertPro engineering hold rated operation from -40°F to 149°F, covering installs from cold-storage facilities to desert parking structures. NDAA compliant. IP66. PoE+ or 12 VDC.

Key features

  • LumiDeterrent: red/blue flashing lights and built-in speaker actively interrupt threats -- triggered by AI analytics or on-demand from the VMS
  • 25x optical zoom with LumiFocus: maintains sharp focus through the full zoom range without manual refocusing mid-patrol
  • LumiTracking: AI auto-tracking follows moving people and vehicles, reducing operator workload on large sites
  • VCA+ analytics: line crossing, intrusion, loitering, parking detection, vehicle/human classification, and aggregate detection -- all on-camera, no server required
  • Dual illumination: IR to 330 ft for covert night coverage; white-light LEDs to 165 ft for full-color nighttime video
  • All-climate rated: IP66, metal housing, -40°F to 149°F for outdoor installs in any environment
  • NDAA compliant: meets NDAA Section 889 requirements for government and regulated commercial projects

System requirements

The P44-8DB25 runs on PoE+ (802.3at) or 12 VDC and connects over a standard RJ-45 10/100 network drop. ONVIF Profile S/G/T compatibility ensures integration with any major VMS. Onboard Micro SD (up to 512 GB), NAS, and FTP/SFTP storage options mean local recording works without a dedicated server. Managed via LumiViewer desktop or mobile app, or any ONVIF-compatible client. Wall mount bracket (LUM-W02) is included; pole, pendant, and corner mount configurations require additional accessories.

Brand:
Luminys
Form factor:
PTZ dome, metal cover with plastic dome
Resolution:
8MP (3840 x 2160) at 30fps
Image sensor:
1/2.8-in. Progressive CMOS
Zoom:
25x optical (5.0 mm to 125.0 mm, F1.6 to F3.6)
Field of view:
H 53.1° to 3.4°, V 30.4° to 1.9°
IR range:
330 ft (100.1 m)
White light range:
165 ft (50.3 m)
Minimum illumination:
0.006 Lux color @ F1.6; 0 Lux with illuminators on
PTZ range:
Pan 0° to 360° (endless), Tilt -15° to 90°, Auto Flip 180°
Pan/tilt speed:
Manual 0.1°/s to 120°/s; Preset up to 240°/s
Presets:
300 presets, 8 patrol tours (up to 32 presets/tour), 5 patterns
Video compression:
H.265+, H.265, H.264+, H.264, MJPEG
Video streams:
3
WDR:
120 dB
Analytics:
VCA+ (line crossing, intrusion, loitering, parking, vehicle/human classification), iMD, Face Detection, LumiTracking, LumiDeterrent
Storage:
Micro SD (max. 512 GB), NAS, FTP/SFTP
Network interface:
RJ-45 10/100 Base-T
Interoperability:
ONVIF Profile S/G/T, CGI, SDK, P2P
Power input:
12 VDC, PoE+ (802.3at)
Power consumption:
8W standard, 12W max
Operating temp:
-40°F to 149°F (-40°C to 65°C)
Operating humidity:
Less than 95% RH
Weather rating:
IP66
Dimensions:
Φ6.3 in. x 11.0 in. (Φ160.0 mm x 280.5 mm)
Net weight:
2.7 kg (6.0 lb)
Included accessories:
Wall mount bracket (LUM-W02), L-wrench, mounting hardware, steel wire rope, Quick Start Guide
Compliance:
NDAA, FCC, IC
What power does the P44-8DB25 require?
12 VDC or PoE+ (802.3at). Power draw is 8W standard, 12W max -- within budget for most PoE+ switches without a dedicated injector.
What is LumiDeterrent and how does it work?
LumiDeterrent is Luminys's active deterrence system: red and blue flashing lights plus a built-in speaker. Activates automatically via VCA+ analytics or on-demand through the VMS. No separate siren or strobe hardware required.
Does this camera track moving targets automatically?
Yes. LumiTracking uses AI to auto-follow people and vehicles. LumiFocus keeps images sharp through the full 25x zoom range without manual refocusing -- useful on large sites where operators can't watch every camera.
What analytics does the P44-8DB25 support?
VCA+ includes line crossing, intrusion, loitering, parking detection, vehicle/human classification, abandoned/missing object, and aggregate detection. Also includes iMD and face detection. All run on-camera; no analytics server needed.
Does this PTZ work in extreme temperatures?
Yes. LumiPolarPro and LumiDesertPro technology allow rated operation from -40°F to 149°F (-40°C to 65°C). Suitable for cold-storage warehouses, northern climates, desert logistics sites, and hot rooftop installs.
Is the P44-8DB25 NDAA compliant?
Yes. NDAA Section 889 compliant and FCC/IC certified. Suitable for government projects, airports, utilities, and any site with federal compliance requirements.
What VMS platforms does this camera support?
ONVIF Profile S/G/T compatible -- works with any major VMS that supports ONVIF. Also supports CGI, SDK, and P2P. Native management via Luminys LumiViewer desktop or mobile app.
How many PTZ presets can this camera hold?
300 presets with 8 patrol tours (up to 32 presets per tour) and 5 programmable patterns. Sufficient for full perimeter patrol on large campuses or multi-zone commercial sites.
What onboard storage options are available?
Micro SD up to 512 GB, NAS, and FTP/SFTP. Local Micro SD keeps recording running if the NAS path drops -- useful for edge sites with limited uplink reliability.

Spec Sheet
