Description

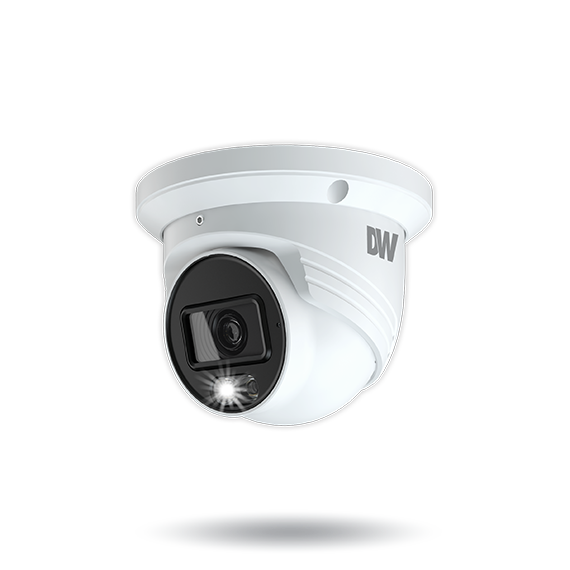

This NDAA compliant MEGApix IP camera delivers crystal-clear color images at 5MP resolution at real-time 30fps with White-Light LEDs built-in. The IP67-rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. The White-Light LEDs offer up to 100ft range for quality color video in any lighting condition. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.    Â
Product Feautres :
- 5MP 1/2.7 image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range White-Light LEDs
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Files:
Specifications:
| 3D digital noise reduction | 3D DNR |
| Advanced Lens Features | Auto focus, P-iris |
| Alarm in/out | 1 output |
| Audio compression | G.711A / U |
| Audio in/out | 1 input, 1 microphone built-in |
| Auto gain control | Auto |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| Camera Control | RS485 |
| Compliance | NDAA, CF, FCC, RoHS, ONVIF |
| Day and night | Auto day/nighy, Night (B/W) |
| De-fog | Yes |
| Dimension | 4.66" x 3.58" (118.6 x 91 mm) |
| Focal Length | 2.8mm, 3.6mm |
| Horizontal Field of View (HFOV) | 80.6°, 96° ~ 35°, 81.4°, 100.4°, 98.5° |
| Housing | Turret |
| IK rating | IK10 Rated |
| Image sensor | 5MP 1/2.7" CMOS sensor |
| IP | IPv4, IPv6 |
| IP rating | Weather Resistant (IP67) |
| IR Distance | 100" range Smart IRâ„¢ |
| LAN | 802.3 compliance 10/100 LAN |
| Lens Type | Fixed Lens |
| Materials | Metal |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Minimum Scene Illumination in color | 0.005 lux (color), 0.02 lux (color), 0.0 lux (B/W) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Email, FTP server |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Operational Features | True D/N |
| Power Consumption | PoE: max 9.0W |
| Power Requirements | 12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included) |
| Privacy Zones | 4 programmable privacy masks |
| Product Type | Cameras, Software, Product |
| Protocols | FTP, PPPoE, QoS, HTTP, RTCP, HTTPs, RTP, ICMP, RTSP, NTP, SMTP, ONVIF, SNMP, UDP, UPnP, IGMP, 802.1x, Bonjour, DDNS, DHCP |
| Resolution | 5MP |
| Resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Security | IP filtering, MAC filtering, Digest authemtication (ID/PW) |
| Sharpness | Yes |
| Shutter Speed | Manual, Auto |
| Slow Shutter Speed | 1/30 ~ 1/60000, 1/30 ~ 1/100000 |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Total Pixels | 2592 (H) × 1944 (V) |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DMP, DW Spectrum® IPVMS, Any ONVIF conformant CMS |
| Warranty | 5 Year Warranty |
| Web Viewer | Windows® OS, Internet Explorer® browser |
| Weight | 1.01 lbs (0.46 kg) |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
Extra Information
Brand:
DW
