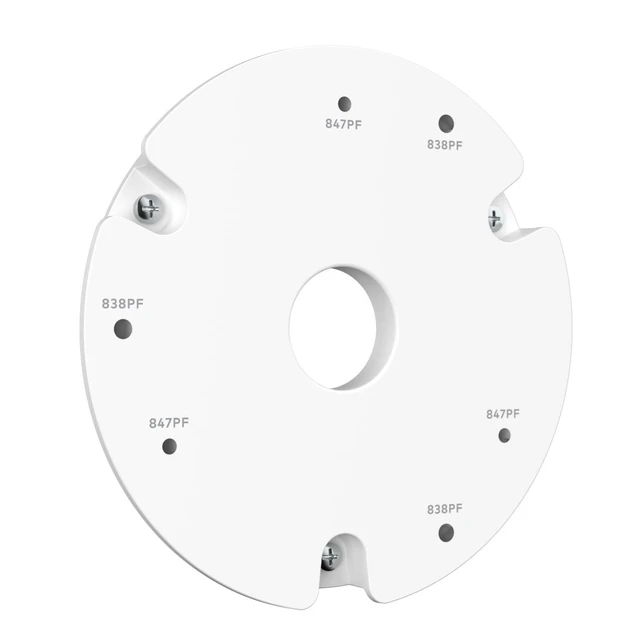

The larger of the two Pro Series mounting plates, sized for the bigger camera bodies. The ADC-VC838PF turret and the ADC-VC847PF will not sit on the small plate, so this is the one to order with them.
Built for the commercial installer
The 5.4 inch flange is the number that matters. It covers a larger opening than the small plate, which is what lets it sit over a conduit box cleanly and take the weight of a bigger camera without flexing.
Getting the plate size wrong is a common cause of a return visit, because it is only discovered once the camera is out of the box at the mounting position. Match the plate to the camera at order time.
Key features
- Sized for the larger Pro Series bodies that will not fit the small plate
- 5.4 in flange to cover a conduit box opening cleanly
- Takes the weight of a bigger camera without flexing at the mount
System requirements
For the Alarm.com ADC-VC847PF and ADC-VC838PF Pro Series cameras. Smaller Pro Series bodies use the ADC-VACC-MNT110 plate.
Brand:
Alarm.com
Form factor:
Large camera mounting plate
Compatibility:
Alarm.com ADC-VC847PF and ADC-VC838PF Pro Series cameras
Dimensions:
5.0 x 0.5 in (12.8 x 1.2 cm)
Flange diameter:
5.4 in (13.8 cm)
Which cameras need the large plate rather than the small one?
The ADC-VC847PF and ADC-VC838PF. Smaller Pro Series bodies such as the ADC-VC827 use the ADC-VACC-MNT110 plate instead.
What is the flange diameter?
5.4 inches (13.8 cm), which covers a conduit box opening cleanly and supports the weight of the larger camera bodies.
What happens if the wrong plate is ordered?
The camera will not seat correctly on the mount. It is usually only discovered at the mounting position, so match the plate to the camera model at order time.
