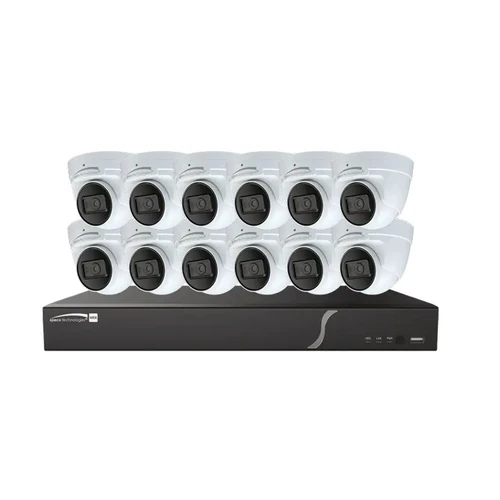

16CH PoE NVR Kit with 12 4MP Turret Cameras, 4TB
SKU SP-ZIP1612T4
- Fast shipping from four branches
- 30-day returns on unopened products
The ZIP1612T4 ships everything an installer needs to stand up a 16-channel IP surveillance system in a single box - NVR, 12 turret cameras with junction boxes, and all 16 PoE ports built right into the recorder. One cable per camera handles power and video, no external PoE switch to source or mount.
The included N16NRX4TB recorder supports up to 8MP recording resolution and H.265 compression, roughly doubling storage life compared to H.264-only systems. Four terabytes of pre-installed storage covers extended retention out of the box, and a second SATA bay is ready when the customer needs more. Rack ears are included for clean panel mounting. NDAA Section 889 Part B compliant across the board, so government and municipal contracts are covered.
The O4VT2 turret cameras pull their weight outdoors with IP67 weatherproofing, 100-foot Smart IR, and built-in microphones for audio verification. True WDR (120dB) handles mixed-lighting entries and loading docks. ONVIF Profile G/M/S/T conformance means they integrate with third-party VMS platforms when the customer outgrows Speco Blue. Backed by a 5-year warranty.
- Ships complete - 12 cameras with junction boxes, NVR, remote, and mouse in one box
- All 16 PoE ports built into the NVR - no external switch or injectors needed
- H.265 compression stores roughly 2x more footage than H.264 on the same drive
- NDAA Section 889 Part B compliant for government contract eligibility
- ONVIF Profile G/M/S/T for third-party VMS integration
- 4K HDMI and VGA outputs for local monitoring
Specifications
| SKU | SP-ZIP1612T4 |
|---|---|
| Brand | Speco |
| Power Source | PoE IEEE 802.3af (Cameras); 48VDC 1.5A (NVR) |
| Compatibility | ONVIF Profile G/M/S/T, Speco Blue VMS |
| Certifications | NDAA Section 889 Part B, UL Listed |
| Warranty | 5 Years |
| NVR Model | N16NRX4TB |
| NVR Channels | 16 |
| Max Recording Resolution | 8MP (4K) @ 30fps |
| PoE Ports | 16 (IEEE 802.3af) |
| Compression | H.265 / H.264 |
| Storage | 4TB pre-installed (2 SATA bays) |
| Monitor Output | 1x HDMI (4K), 1x VGA |
| Camera Model | O4VT2 |
| Camera Resolution | 4MP (2560 x 1440) @ 30fps |
| Camera Sensor | Progressive Scan 1/3" CMOS |
| Camera Lens | 2.8mm Fixed |
| Camera Field of View | 94° (H), 50° (V), 115° (D) |
| IR Range | Smart IR, 100 ft |
| Minimum Illumination | 0.005 lux @ F1.6; 0 lux with IR |
| Camera WDR | True WDR (120dB), BLC, HLC |
| IP Rating | IP67 |
| Built-in Microphone | Yes |
| On-Camera Storage | MicroSD up to 256GB |
| Camera Analytics | Line crossing, object detection, region intrusion, tamper |
| Ethernet | RJ-45 (100/1000M) |
| NVR Power Supply | 48VDC, 1.5A (included) |
| NVR Dimensions | 15.0" x 10.6" x 2.0" (380 x 268 x 45mm) |
| Included Accessories | 12 cameras with junction boxes, remote control, USB mouse, rack ears |
