The VLD10 runs full 1080p HD-TVI over existing coax, so you're upgrading analog sites to 2MP without pulling new cable. It outputs HD-TVI, CVI, AHD, and 960H analog, which means it drops into whatever recorder is already on the job - no format headaches.

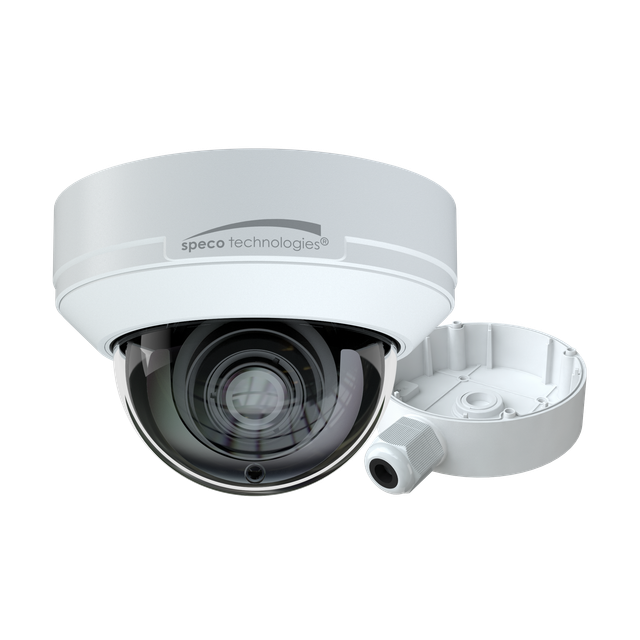

Built for outdoor and indoor installs alike, the VLD10 carries IP67 weather resistance and IK10 vandal protection in a compact dome housing. True WDR handles mixed-lighting entries and lobbies without blown-out hotspots, and the integrated IR pushes usable night video out to 65 feet. The included junction box accepts NPT/BSP conduit, keeping your cable runs clean and code-compliant. NDAA-compliant (Section 889 Part B) and backed by Speco's 5-year warranty.
- Multi-format output (HD-TVI/CVI/AHD/960H) - works with the recorder already on site
- IP67 + IK10 rated for outdoor and vandal-prone locations
- IR up to 65 ft with Smart IR for even illumination
- Junction box included with NPT/BSP conduit compatibility
- NDAA-compliant for government and contract eligibility
- 12VDC operation - powers off a standard camera PSU
Brand:
Speco
Operating Voltage:
12VDC
Power Source:
12VDC (power supply not included)
Power Consumption:
IR OFF: < 1.5W; IR ON: < 4.5W
Certifications:
NDAA Compliant (Section 889 Part B)
Compatibility:
HD-TVI, CVI, AHD, 960H Analog
IP Rating:
IP67
IK Rating:
IK10
Image Sensor:
1/2.8" CMOS, 2MP
Resolution:
1920 x 1080
Lens:
2.8mm Fixed (M12 Mount)
IR Range:
Up to 65 ft
Video Output:
HD-TVI / CVI / AHD / CVBS
Frame Rate:
30fps (NTSC) / 25fps (PAL)
WDR:
True WDR
Day/Night:
Smart IR
S/N Ratio:
ā„ 52dB (AGC OFF)
Electronic Shutter:
1/30s - 1/50000s
Minimum Illumination:
Color: 0.001 lux @F1.2 (AGC ON); BW: 0 lux (IR ON)
Angle Adjustment:
Pan 0Ā°-355Ā° / Tilt 0Ā°-67Ā° / Rotation 0Ā°-355Ā°
Operating Temperature:
-22Ā°F to 122Ā°F
Operating Humidity:
10% - 90% RH
Dimensions:
4.69" (Dia.) x 3.46" (H)
Weight:
1.28 lbs
Warranty:
5 Years
Mounting:
Junction box included (NPT/BSP compatible)
