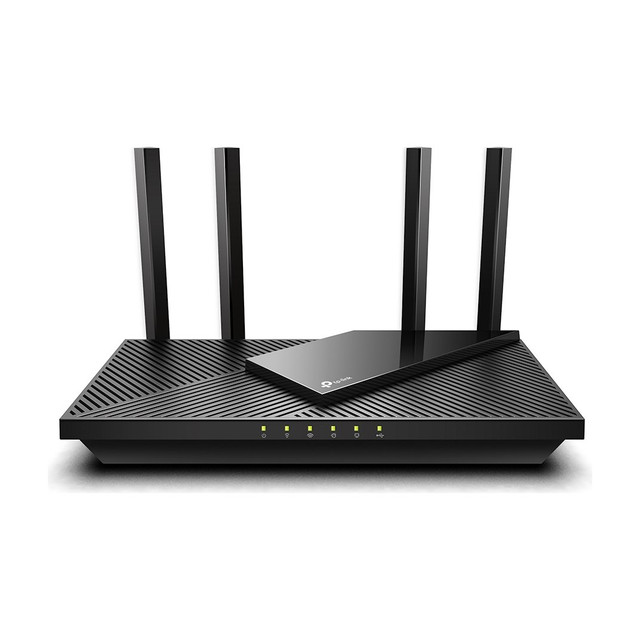

AX3000 Dual-Band Gigabit Wi-Fi 6 Router with OneMesh, EasyMesh and USB 3.0
  • Wireless technology Wi-Fi
TP-Link

AX3000 Dual-Band Gigabit Wi-Fi 6 Router with OneMesh, EasyMesh and USB 3.0

SKU TPL-Archer AX55 Model Archer AX55

  • AX3000 dual-band Wi-Fi 6 with 160 MHz channels and OFDMA
  • Gigabit WAN and four Gigabit LAN ports, plus USB 3.0 for shared storage
  • EasyMesh and OneMesh support to extend coverage under one network name
  • WPA3, guest networks, and a built-in VPN server and client
New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Product highlights

  • ConnectivityAX3000 Wi-Fi 6, 160 MHz
  • Ports1 WAN + 4 LAN Gigabit, USB 3.0
  • RangeEasyMesh and OneMesh
  • Power12V / 2A DC

The Archer AX55 is an AX3000 dual-band Wi-Fi 6 router for homes and small offices, a solid pick when a customer's ISP router is the weak link in a camera or smart home install. It brings Wi-Fi 6 speed, four Gigabit LAN ports for wired devices and a USB 3.0 port for shared storage.

Built for residential and small office installs

Dual-band Wi-Fi 6 reaches up to 2402 Mbps on 5 GHz with 160 MHz channels and 574 Mbps on 2.4 GHz, with OFDMA and beamforming to keep many devices connected. If one router does not cover the building, EasyMesh and OneMesh add compatible extenders or mesh units under one network name. It runs in router or access point mode, supports WPA3, and includes a VPN server and client, so you can reach the network remotely. Setup and management are done in the TP-Link Tether app or a web browser.

Key features

  • AX3000 dual-band Wi-Fi 6: 160 MHz channels, OFDMA, four high-performance antennas
  • Gigabit wired: 1 WAN and 4 LAN ports for NVRs, hubs and desktops
  • USB 3.0 port: shared storage via Samba, FTP and media server
  • EasyMesh and OneMesh: grow coverage with compatible devices under one network name
  • VPN server and client: OpenVPN, PPTP and L2TP for remote access
  • WPA3 and HomeShield security with guest networks on both bands

System requirements

An internet connection from a cable, DSL or fiber modem or ISP gateway. Set up with the Tether app or a web browser.

Specifications

SKUTPL-Archer AX55
BrandTP-Link
Form factorDesktop dual-band Wi-Fi 6 router
CommunicationEthernet / IP
Power input12V / 2A DC adapter (included)
Wi-Fi standardWi-Fi 6
Port speedGigabit
Ethernet ports1 x Gigabit WAN, 4 x Gigabit LAN
USB1 x USB 3.0
Wireless standardsIEEE 802.11ax/ac/n/a (5 GHz), 802.11ax/n/b/g (2.4 GHz)
Wireless speedUp to 2402 Mbps on 5 GHz (HE160), up to 574 Mbps on 2.4 GHz
Antennas4 fixed external
Working modesRouter, access point
MeshEasyMesh and OneMesh compatible
Wireless securityWPA3, WPA2, WPA, WPA/WPA2-Enterprise; guest network per band
VPNServer: OpenVPN, PPTP. Client: OpenVPN, PPTP, L2TP
ProcessorDual-core CPU
Communication notesIPv4/IPv6, DDNS, port forwarding, UPnP, IPTV/VLAN tagging, QoS by device; Tether app and web UI
Dimensions10.2 x 5.3 x 1.5 in (261.1 x 134.5 x 41.0 mm)
Operating temp32°F to 104°F (0°C to 40°C)
Operating humidity10 to 90%, non-condensing
ComplianceFCC, CE
Package contentsArcher AX55, power adapter, Ethernet cable, quick installation guide

FAQs

Can the Archer AX55 work as an access point only?
Yes. It supports router mode and access point mode, so it can sit behind an existing ISP gateway.
Does it support mesh?
Yes. It works with EasyMesh-compatible devices and TP-Link OneMesh extenders to expand coverage under one network name.
Is the Archer AX55 managed by Omada?
No. It is a TP-Link home router managed in the Tether app or a web browser. For Omada-managed sites, use an Omada gateway and access points.
Does it have a VPN?
Yes. It has an OpenVPN and PPTP server, and an OpenVPN, PPTP and L2TP client.
