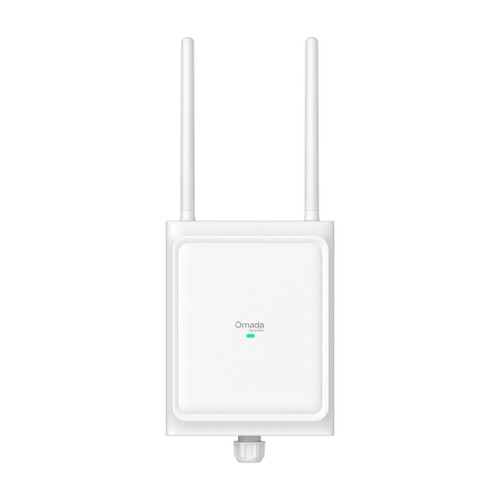

Omada BE11000 Indoor/Outdoor Tri-Band Wi-Fi 7 Access Point, IP68, Directional and Omni Antennas
SKU TPL-EAP775-Outdoor Model EAP775-Outdoor
- BE11000 tri-band Wi-Fi 7 outdoor access point with omni and directional antennas
- IP68 enclosure with anti-UV coating and 6kV lightning protection
- Auto-detected antennas, with 6 GHz AFC-enabled where available
- Powers from 802.3at PoE+ over one cable, managed through Omada SDN
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- ConnectivityBE11000 tri-band Wi-Fi 7
- PoE802.3at PoE+
- Ports1 x 2.5G RJ45
- Weather ratingIP68
- MountPole or wall, kits included
The Omada EAP775-Outdoor is an IP68 tri-band Wi-Fi 7 access point with both directional and omnidirectional antennas, for campuses, venues and industrial yards where coverage has to be shaped. The antennas are auto-detected, so changing the antenna mode on site does not need extra configuration.
Built for the outdoor installer
BE11000 delivers up to 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz. It carries two external omni antennas plus internal directional antennas on 2.4 and 5 GHz and internal directional and omni antennas on 6 GHz. The 6 GHz band is AFC-enabled where AFC is available. One 2.5G port takes 802.3at PoE+, and the pole and wall kits, waterproof kit and antennas are included.
Key features
- IP68 weatherproof enclosure: anti-UV coating, 6kV lightning protection, rated -22°F to 158°F
- Omni or directional: plug-and-play antenna detection switches between antenna modes
- Tri-band Wi-Fi 7: 2.4, 5 and 6 GHz, with 6 GHz AFC-enabled where available
- One cable: 2.5G port powered by 802.3at PoE+
- Pole and wall mounting: mounting kit, waterproof kit and antennas in the box
- Bluetooth LE 5.2: on board
System requirements
Mesh, roaming, captive portal and zero-touch provisioning require an Omada controller: the Omada Cloud-Based Controller, an Omada hardware controller or the Omada Software Controller. Outdoor 6 GHz use depends on AFC availability in your region. Power requires an 802.3at PoE+ switch or injector. Wi-Fi 7 features depend on the client devices supporting them.
Specifications
| SKU | TPL-EAP775-Outdoor |
|---|---|
| Brand | TP-Link |
| Form factor | Indoor/outdoor tri-band Wi-Fi 7 access point |
| Communication | Ethernet / IP |
| Power input | 802.3at PoE+ |
| Power consumption | 20.4 W max (PoE+) |
| Wi-Fi standard | Wi-Fi 7 |
| PoE | 802.3at PoE+ |
| Port speed | 2.5G |
| Works with | Omada |
| Ethernet ports | 1 x 2.5G RJ45 (10/100/1000/2500 Mbps), PoE in |
| Wireless standards | IEEE 802.11be/ax/ac/n/g/b/a |
| Wireless speed | Up to 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, 688 Mbps on 2.4 GHz |
| Antennas | External omni: 2 x 4.5 dBi (2.4 GHz), 2 x 5.3 dBi (5 GHz); internal directional: 2 x 8.7 dBi (2.4 GHz), 2 x 10.5 dBi (5 GHz), 2 x 12 dBi (6 GHz); internal omni: 2 x 7 dBi (6 GHz) |
| Bluetooth | BLE 5.2 |
| SSIDs | Up to 24 (8 per band) |
| Wireless security | WPA3, WPA2 and WPA Personal/Enterprise, OWE, 802.1X, captive portal, rogue AP detection, client isolation, SSID to VLAN mapping |
| Controller management | Omada Cloud-Based, hardware or Software Controller; Omada app |
| Communication notes | SNMP v1/v2c/v3, SSH, web UI, local/remote syslog, email alerts, L3 management, multi-site management, management VLAN |
| Weather rating | IP68 |
| Mounting | Pole or wall (kits included) |
| Dimensions | 8.78 x 6.89 x 2.20 in (223 x 175 x 56 mm) |
| Operating temp | -22°F to 158°F (-30°C to 70°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | CE, FCC, IC, NCC, VCCI, JRF, BSMI |
| Package contents | EAP775-Outdoor, mounting kit, waterproof kit, antennas, installation guide |
