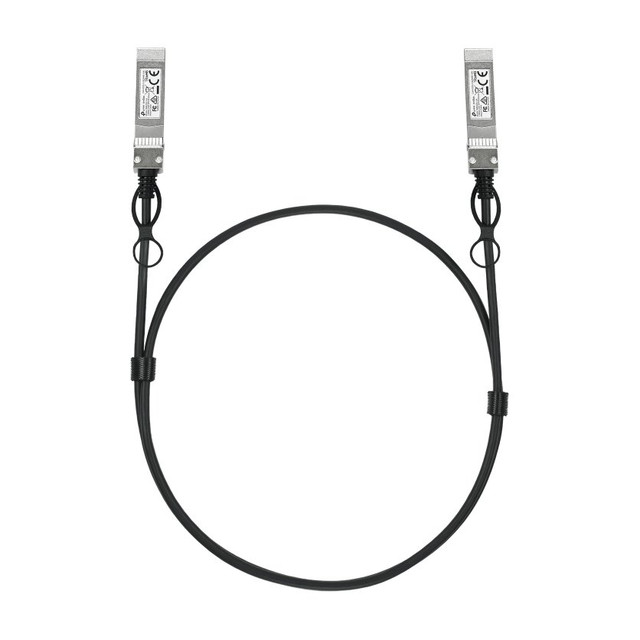

Omada 1 Meter 25G SFP28 Direct Attach Cable, Passive Twinax, 25/10 Gbps, Up to 1 m
SKU TPL-SM6220-1M Model SM6220-1M
- 1 meter passive SFP28 direct attach cable for 25 Gigabit links
- Data rate of 25, 10 or 1 Gbps, 30AWG silver-plated copper conductors
- Works in 25G SFP28 and 10G SFP+ slots, up to 1 m between ports
- Rated for 32°F to 158°F operating temperature, 0.89 in bend radius
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Range1 m
- Connectivity25G SFP28 DAC
- PortsSFP28 on both ends
The Omada SM6220-1M is a 1 meter passive 25G SFP28 direct attach cable with an SFP28 connector on each end. It links two 25G ports within a rack or across adjacent racks without separate optics or fiber.
Built for short 25G runs
It is a passive twinax assembly with 30AWG silver-plated copper conductors and a 0.89 in (22.5 mm) minimum bend radius. Data rate is 25 Gbps, 10 Gbps or 1 Gbps, and the listing notes it works in 25G SFP28 and 10G SFP+ slots.
Key features
- 25 Gbps over 1 m of passive twinax
- SFP28 connectors on both ends for switch-to-switch runs
- Runs at 25, 10 or 1 Gbps depending on the ports it connects
- 30AWG silver-plated copper with a 22.5 mm minimum bend radius
System requirements
Two SFP28 or SFP+ slots within 1 m of each other.
Specifications
| SKU | TPL-SM6220-1M |
|---|---|
| Brand | TP-Link |
| Form factor | Passive SFP28 direct attach cable (DAC) |
| Communication | Ethernet / IP |
| Port speed | 25G |
| Port speed | 10G |
| Port speed | Gigabit |
| Connector type | SFP28 on both ends |
| Cable length | 39.37 in (1,000 mm) |
| Max distance | 1 m |
| Data rate | 25 Gbps / 10 Gbps / 1 Gbps |
| Conductor | Silver-plated copper, 30AWG |
| Min bend radius | 0.89 in (22.5 mm) |
| Compatibility notes | Works in 25G SFP28 and 10G SFP+ slots |
| Dimensions | Plug: 2.26 x 0.53 x 0.34 in (57.5 x 13.55 x 8.55 mm) |
| Operating temp | 32°F to 158°F (0°C to 70°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
Documents and resources
FAQs
How long is the SM6220-1M?
1 m (39.37 in), with an SFP28 connector on each end.
Is it fiber or copper?
Copper. It is a passive twinax assembly with 30AWG silver-plated copper conductors.
Does it work in a 10G SFP+ slot?
TP-Link lists it as compatible with 25G SFP28 and 10G SFP+ slots, with data rates of 25 Gbps, 10 Gbps and 1 Gbps.
What is the minimum bend radius?
0.89 in (22.5 mm).
