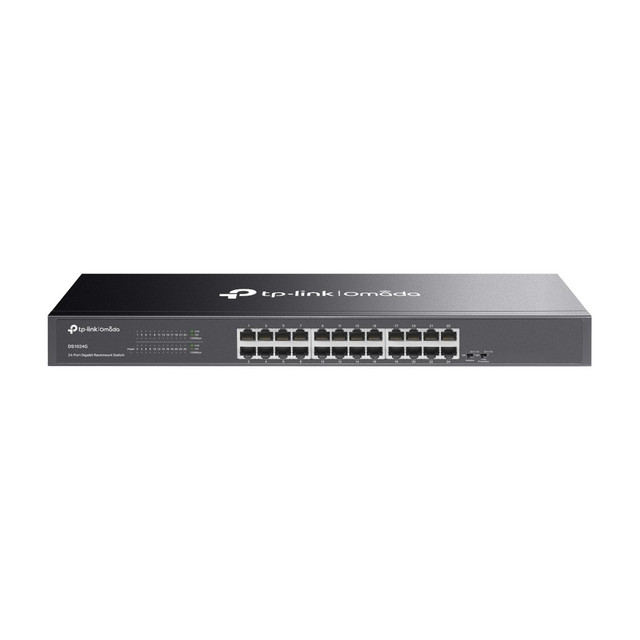

Omada 24-Port Gigabit Unmanaged Rackmount Switch with Isolation Mode, 1U Steel Case
SKU TPL-DS1024G Model DS1024G
- 24 Gigabit RJ45 ports and 48 Gbps switching in a fanless 1U steel case
- Isolation mode separates client traffic on ports 1-22 with one switch toggle
- Loop prevention on all 24 ports plus 802.1p/DSCP QoS and Green Ethernet
- Unmanaged plug and play: no configuration and no Omada controller needed
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports24 x Gigabit RJ45
- ConnectivityUnmanaged, plug and play
- Mount1U rack, kit included
- Size17.3 x 5.5 x 1.7 in, fanless
The DS1024G is a 24-port Gigabit unmanaged rackmount switch for the job where you just need more ports on a flat network. Rack it, plug it in and it works, with no fan to fail and nothing to configure.
Built for dense, no-fuss port expansion
Isolation mode on ports 1-22 separates client traffic with one toggle, and loop prevention on all 24 ports watches for cabling loops before they take down the segment. 802.1p/DSCP QoS keeps latency-sensitive traffic moving, and the fanless steel case runs silently in a small rack.
Key features
- 24 Gigabit ports: with 48 Gbps switching capacity
- Isolation mode: one-click client separation on ports 1-22
- Loop prevention: covers ports 1-24
- QoS and Green Ethernet: 802.1p/DSCP priority and lower power draw
- Rack kit included, fanless: 1U 19-inch mounting with no fan noise
System requirements
None. Standard power cord included. No software and no configuration.
Specifications
| SKU | TPL-DS1024G |
|---|---|
| Brand | TP-Link |
| Form factor | 24-port Gigabit unmanaged rackmount switch |
| Communication | Ethernet / IP |
| Power input | 100-240 V AC, 50/60 Hz (power cord included) |
| Power consumption | 13.62 W max |
| Management | Unmanaged |
| Port speed | Gigabit |
| Ethernet ports | 24 x 10/100/1000 Mbps RJ45, auto MDI/MDIX |
| Switching capacity | 48 Gbps |
| Packet forwarding rate | 35.7 Mpps |
| MAC address table | 8K |
| Jumbo frame | 10 KB |
| Controller management | Not supported. Omada unmanaged switches do not support Omada SDN central management. |
| Communication notes | Isolation mode on ports 1-22, loop prevention on ports 1-24, 802.1p/DSCP QoS, Green Ethernet, 802.3x flow control |
| Cooling | Fanless |
| Mounting | 1U 19-inch rack (kit included) or desktop (rubber feet included) |
| Dimensions | 17.3 x 5.5 x 1.7 in (440 x 140 x 44 mm) |
| Operating temp | 32°F to 104°F (0°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE, RoHS |
| Package contents | DS1024G, power cord, installation guide, rackmount kits, rubber feet |
Documents and resources
FAQs
Does the DS1024G need configuration?
No. It is unmanaged and works out of the box. There is no web interface or VLAN support.
What does isolation mode do?
It separates client traffic on ports 1-22 so those ports cannot talk to each other, which helps security and performance.
Can it join an Omada controller?
No. TP-Link states Omada unmanaged switches do not support Omada SDN central management.
Is it rack mountable and quiet?
Yes. The 1U steel case includes rackmount kits and rubber feet, and the switch is fanless.
