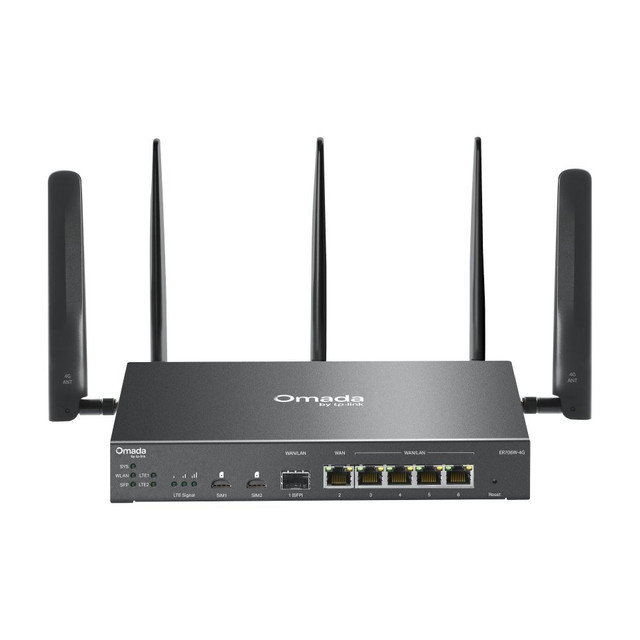

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit VPN Router with SFP WAN/LAN and Load Balancing
SKU TPL-ER706W-4G Model ER706W-4G
- Built-in 4G+ Cat6 modem at up to 300 Mbps down plus AX3000 Wi-Fi 6
- One Gigabit SFP port and five Gigabit RJ45 ports for wired WAN and LAN
- IPsec, SSL VPN, OpenVPN, WireGuard, PPTP, L2TP and GRE VPN, SD-WAN under Omada
- Load balancing and link backup between cellular and wired WANs
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Connectivity4G+ Cat6 and AX3000 Wi-Fi 6
- Ports5 Gigabit RJ45 + 1 SFP
- CompatibilityOmada SDN, SD-WAN
- Power12V / 2A DC
- Size8.9 x 5.2 x 1.4 in
The Omada ER706W-4G is a Gigabit VPN gateway with a built-in 4G+ Cat6 modem and AX3000 Wi-Fi 6, a single box for a site that needs cellular as a WAN or a quick-turn temporary link. It can run the cellular connection alongside a wired uplink with load balancing and link backup.
Built for sites with cellular uplinks
The 4G+ Cat6 radio reaches 300 Mbps down and 50 Mbps up, with two detachable LTE antennas and a Nano SIM slot. Wired ports are one Gigabit SFP WAN/LAN, one Gigabit WAN and four Gigabit LAN/WAN, and Wi-Fi reaches 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz through three detachable antennas. It supports IPsec, SSL VPN, OpenVPN, WireGuard, PPTP, L2TP and GRE VPN, plus SD-WAN in controller mode. TP-Link notes it is not compatible with AT&T Text & Data plans in the US.
Key features
- 4G+ Cat6 built in: 300 Mbps down and 50 Mbps up with detachable LTE antennas
- Built-in AX3000 Wi-Fi 6: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- SFP plus Gigabit RJ45: one Gigabit SFP WAN/LAN, one Gigabit WAN and four Gigabit LAN/WAN ports
- Load balancing and link backup: run cellular and wired WANs together or as failover
- Full VPN set: IPsec, SSL VPN, OpenVPN, WireGuard, PPTP, L2TP and GRE, plus SD-WAN in controller mode
- Omada SDN: one dashboard with switches and access points
System requirements
Runs through its standalone web interface. Centralized management and SD-WAN need an Omada controller, and zero-touch provisioning needs an Omada controller. A Nano SIM with a compatible data plan is required for cellular.
Specifications
| SKU | TPL-ER706W-4G |
|---|---|
| Brand | TP-Link |
| Form factor | 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit VPN gateway, desktop, wall or rack mount |
| Communication | Ethernet / IP |
| Communication | Cellular |
| Power input | 12V / 2A DC adapter (included) |
| Power consumption | 17.3 W max |
| Wi-Fi standard | Wi-Fi 6 |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 1 x Gigabit WAN, 4 x Gigabit LAN/WAN, 1 x Gigabit SFP WAN/LAN |
| Cellular | 4G+ Cat6, 300 Mbps down / 50 Mbps up, 1 Nano SIM slot; US LTE-FDD B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71, LTE-TDD B41/B48 |
| Wireless standards | IEEE 802.11ax/ac/n/a (5 GHz), 802.11ax/n/b/g (2.4 GHz) |
| Wireless speed | Up to 2402 Mbps on 5 GHz (HE160), up to 574 Mbps on 2.4 GHz |
| Antennas | 3 detachable dual-band Wi-Fi, 2 detachable omnidirectional LTE |
| SSIDs | 16 in total (8 per radio) |
| Wireless security | WPA, WPA2, WPA3 Personal and Enterprise; guest network |
| NAT throughput | 943 Mbps up / 941 Mbps down (static IP) |
| Concurrent sessions | 150,000 |
| VPN | 100 IPsec, 50 SSL VPN, 55 OpenVPN, 50 PPTP and 50 L2TP tunnels, WireGuard, GRE (standalone) |
| IPsec VPN throughput | Up to 606.8 Mbps (ESP-SHA256-AES256) |
| SD-WAN | Yes, in Omada controller mode |
| Load balancing | Intelligent load balance, application-optimized routing, link backup, online detection |
| Security | Stateful ACL, signature-based IPS/IDS, DPI, DoS and flood defense, ARP inspection |
| Controller management | Omada Central (Cloud-Based), hardware or Software Controller; Omada app |
| Communication notes | 802.1Q VLAN, IPv6, DHCP server, DDNS, IGMP proxy, SNMP v1/v2c/v3, SMS send and receive, mesh with Omada EAPs that support mesh |
| Memory | 512 MB DDR4 |
| Surge protection | 4 kV |
| Mounting | Desktop, wall or rack (rackmount kit not provided) |
| Dimensions | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm), antennas not included |
| Operating temp | 32°F to 104°F (0°C to 40°C) |
| Operating humidity | 10 to 90%, non-condensing |
| Compliance | FCC |
| Package contents | ER706W-4G, power adapter, rubber feet, quick installation guide |
