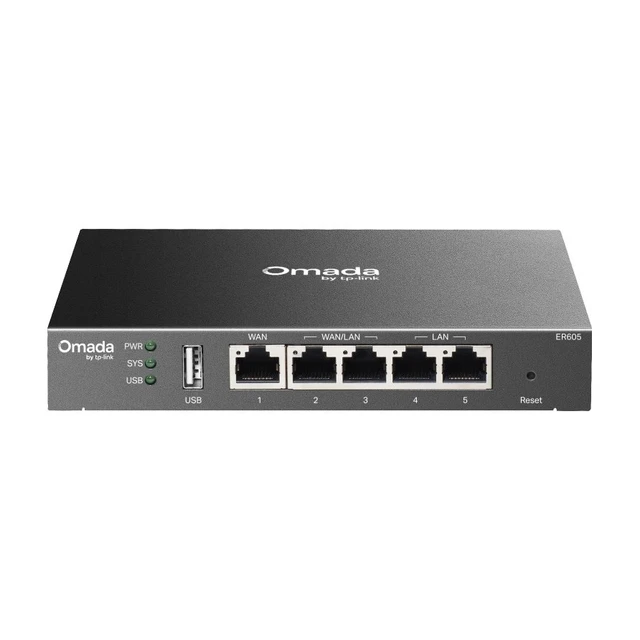

Omada Gigabit Multi-WAN VPN Router with Load Balancing, SD-WAN and Cloud Management
SKU TPL-ER605 Model ER605
- Up to three Gigabit WAN links with load balancing and failover
- IPsec, OpenVPN, L2TP, PPTP and WireGuard VPN, plus SD-WAN under Omada
- About 940 Mbps NAT throughput and 150,000 concurrent sessions
- USB port takes an LTE dongle for cellular backup
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports5 Gigabit, up to 3 WAN
- ConnectivityIPsec, OpenVPN, WireGuard
- CompatibilityOmada SDN, SD-WAN
- Power12V DC, 7.94 W max
- Size6.2 x 4.0 x 1.0 in
The Omada ER605 is a Gigabit VPN router and the gateway for an Omada site. With up to three WAN connections, load balancing and failover, it keeps a small office, retail store or camera site online when one ISP drops, and it ties branch offices together over VPN.
Built for the small business network
One WAN port, two WAN/LAN ports and two LAN ports let you run up to three internet connections with intelligent load balancing and link backup, and the USB port accepts an LTE dongle as a cellular backup. VPN covers 20 IPsec tunnels, OpenVPN, L2TP, PPTP and WireGuard, and SD-WAN connects sites when the router is managed by an Omada controller. NAT throughput is about 940 Mbps, with 150,000 concurrent sessions. Adopted into Omada, it sits in the same dashboard as the switches and APs, with zero-touch provisioning through the cloud controller.
Key features
- Up to 3 WAN links: load balancing, link backup and application-optimized routing
- USB LTE backup: add a USB LTE dongle for cellular failover
- Full VPN set: IPsec, OpenVPN, L2TP, PPTP and WireGuard, plus SD-WAN in controller mode
- Security: stateful firewall, ACLs, DPI with application awareness, DoS defense
- Omada SDN: one dashboard with switches and APs, zero-touch provisioning through the cloud controller
- Desktop or wall mount, 12V adapter included
System requirements
Runs standalone through its web interface. Centralized management, SD-WAN and the Omada app require an Omada Cloud-Based, hardware or Software Controller; zero-touch provisioning requires the cloud controller.
Specifications
| SKU | TPL-ER605 |
|---|---|
| Brand | TP-Link |
| Form factor | Gigabit multi-WAN VPN router, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | 12V/1A DC external adapter (included) |
| Power consumption | 7.94 W max |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 1 x Gigabit WAN, 2 x Gigabit WAN/LAN, 2 x Gigabit LAN |
| USB | 1 x USB 2.0 (supports a USB LTE dongle) |
| Max WAN connections | 3 |
| NAT throughput | About 940 Mbps (static IP, DHCP or PPPoE) |
| Concurrent sessions | 150,000 |
| VPN | 20 IPsec tunnels, 50 OpenVPN, 16 L2TP, 16 PPTP, WireGuard, GRE (standalone) |
| IPsec VPN throughput | Up to 250.94 Mbps (ESP-SHA256-AES256) |
| SD-WAN | Yes, in Omada controller mode |
| Load balancing | Intelligent load balance, application-optimized routing, link backup, online detection |
| Security | Stateful ACL, DPI (2,421 application types), flood and scan defense, ARP inspection |
| Routing | Static and policy routing |
| Controller management | Omada Cloud-Based, hardware or Software Controller; Omada app |
| Communication notes | 802.1Q VLAN, IPv6, DHCP server, DDNS, IGMP proxy, captive portal and RADIUS, SNMP v1/v2c/v3 |
| Memory | 256 MB DDR, 128 MB NAND flash |
| Mounting | Desktop or wall |
| Dimensions | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Operating temp | 32°F to 104°F (0°C to 40°C) |
| Operating humidity | 10 to 90%, non-condensing |
| Compliance | FCC, CE |
| Package contents | ER605, power adapter, Ethernet cable, quick installation guide |
