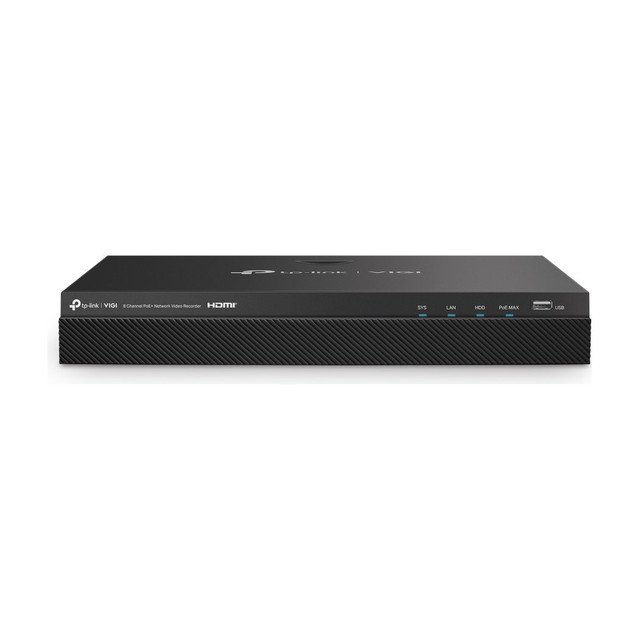

VIGI 8-Channel PoE+ Network Video Recorder, 8MP, 90 W PoE, 2 SATA Bays, 4K HDMI
SKU TPL-VIGI NVR2008H-8MP Model VIGI NVR2008H-8MP
- 8 IP channels with eight built-in 802.3af/at PoE+ ports and a 90 W budget
- Records up to 8MP with H.265+ and 160 Mbps incoming bandwidth
- Two SATA bays at up to 16 TB each, plus eSATA and USB 3.0
- Simultaneous 4K HDMI and VGA, 6 alarm inputs and 4 outputs
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Camera8 channels, up to 8MP
- PoE8 ports, 90 W, 802.3af/at
- Storage2 SATA bays, 16 TB each
- Resolution4K HDMI + VGA output
- CompatibilityVIGI and ONVIF S/T cameras
The VIGI NVR2008H-8MP is an 8-channel network video recorder with eight PoE+ ports built in, so cameras plug straight into the back of the recorder with no separate PoE switch. It records up to 8MP, drives a 4K monitor over HDMI and holds two hard drives for long retention.
Built for small and mid-size camera systems
The eight 10/100 PoE+ ports are 802.3af/at with a 90 W budget and up to 30 W on any one port. Two SATA bays take up to 16 TB each, and eSATA and USB 3.0 handle expansion and exports. HDMI (up to 4K) and VGA can show live view at the same time, and one-click setup with VIGI cameras gets a site recording quickly. Recording and playback are managed from the VIGI app, web browser or VIGI VMS, and ONVIF Profile S/T lets you mix in third-party cameras.
Key features
- 8 built-in PoE+ ports: 90 W total, up to 30 W per port, 802.3af/at
- Records up to 8MP: H.265+ compression, 160 Mbps incoming bandwidth
- Two SATA bays: up to 16 TB per drive, plus eSATA (drives sold separately)
- 4K HDMI and VGA output at the same time
- Smart detection: motion, line crossing and intrusion with human and vehicle classification
- 6 alarm inputs and 4 outputs for tying in door contacts, sirens and strobes
System requirements
Hard drives are not included; install one or two SATA drives before recording. Works with VIGI cameras and ONVIF Profile S/T cameras. Remote viewing through the VIGI app (iOS and Android) or a web browser.
Specifications
| SKU | TPL-VIGI NVR2008H-8MP |
|---|---|
| Brand | TP-Link |
| Form factor | 8-channel PoE+ network video recorder, desktop |
| Communication | Ethernet / IP |
| Communication | RTSP |
| Power input | 53.5V DC / 2.43A (adapter included) |
| Power consumption | 40 W max with drives, 8.5 W without (not counting PoE) |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Fast Ethernet |
| Port speed | Gigabit |
| Works with | ONVIF |
| Channels | 8 IP channels |
| Recording resolution | Up to 8MP |
| Decoding capacity | 30 fps: 4 ch at 8MP, 6 ch at 5MP, 8 ch at 4MP |
| Bandwidth | 160 Mbps incoming, 160 Mbps outgoing |
| PoE ports | 8 x 10/100 RJ45 PoE+ |
| PoE budget | 90 W total, up to 30 W per port |
| Ethernet ports | 1 x Gigabit RJ45 uplink |
| Hard drive bays | 2 x SATA, up to 16 TB each (drives not included) |
| Video outputs | HDMI up to 3840 x 2160, VGA up to 1920 x 1080, simultaneous |
| USB | 1 x USB 2.0 front, 1 x USB 3.0 rear |
| eSATA | 1 |
| Alarm inputs/outputs | 6 in / 4 out |
| Audio | 1 x RCA in, 1 x RCA out |
| Video compression | H.265+, H.265, H.264+, H.264 |
| Communication notes | ONVIF Profile S/T, CGI, HTTPS, SNMP, IPv6; VIGI app (iOS/Android), web browser |
| Dimensions | 13 x 11.2 x 1.8 in (330 x 285 x 45 mm) |
| Operating temp | 14°F to 131°F (-10°C to 55°C); power adapter 32°F to 104°F |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, IC, CE, UKCA, RCM, HDMI |
| Package contents | NVR, power adapter, HDD power and data cables, terminal blocks, mounting brackets, screws, rubber feet, mouse, installation guide |
